Non-penetrating ballast solution for flat roofs with a maximum slope of 6 degrees.

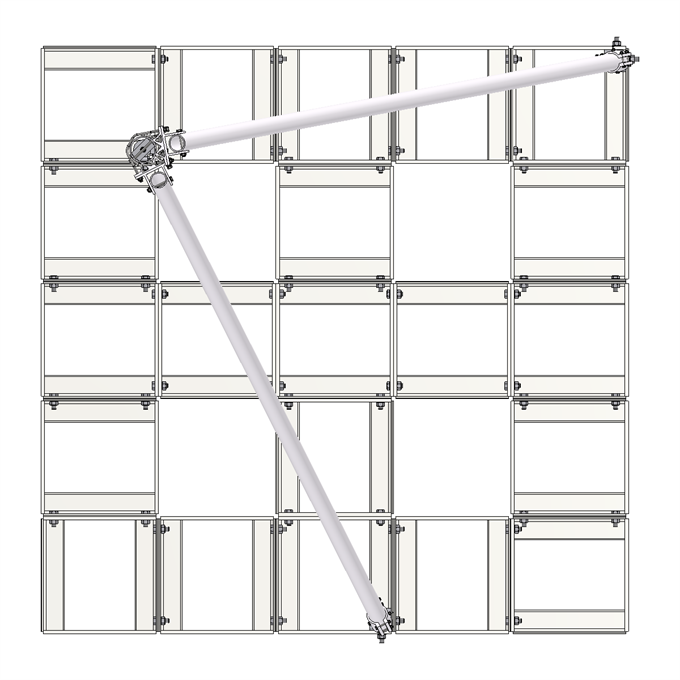

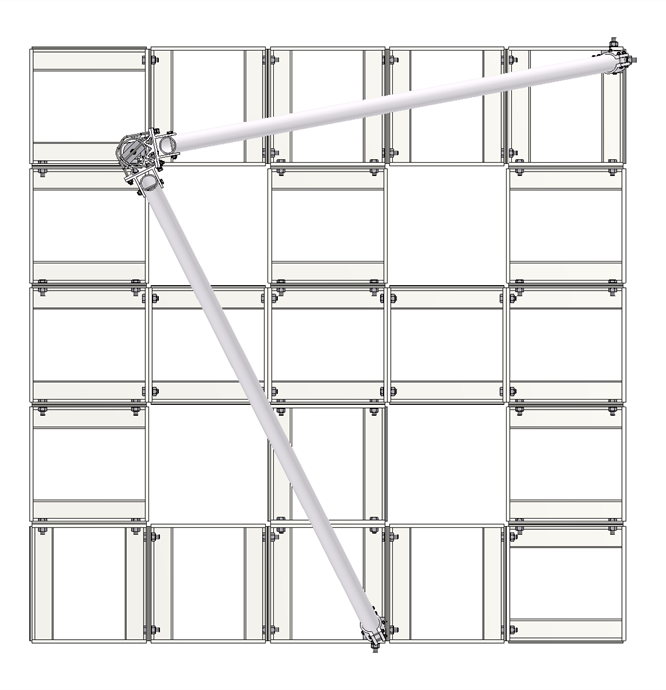

The base is built on a scalable matrix of box modules that can be expanded should a future need arise. Each ballast box weighs 23kg, is 500mm x 500mm, made of HDG steel and can accommodate standard 400 x 400mm concrete pavers for extra ballast.

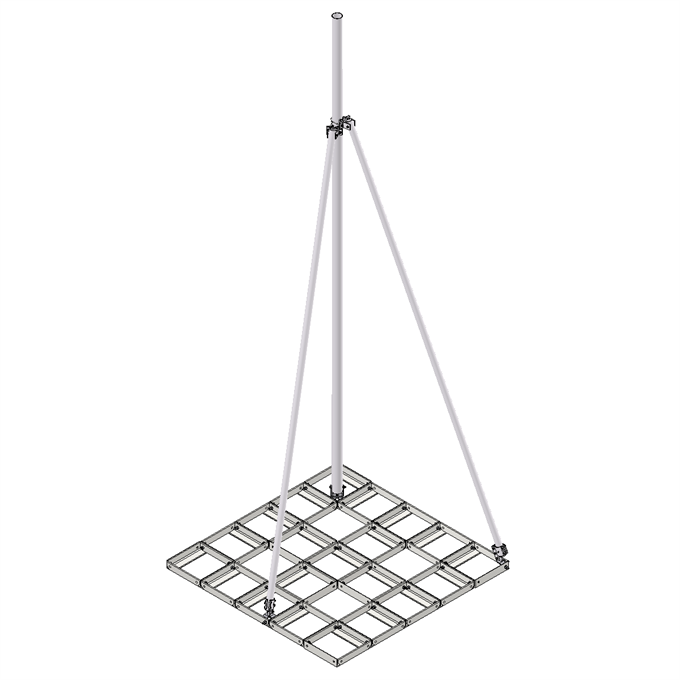

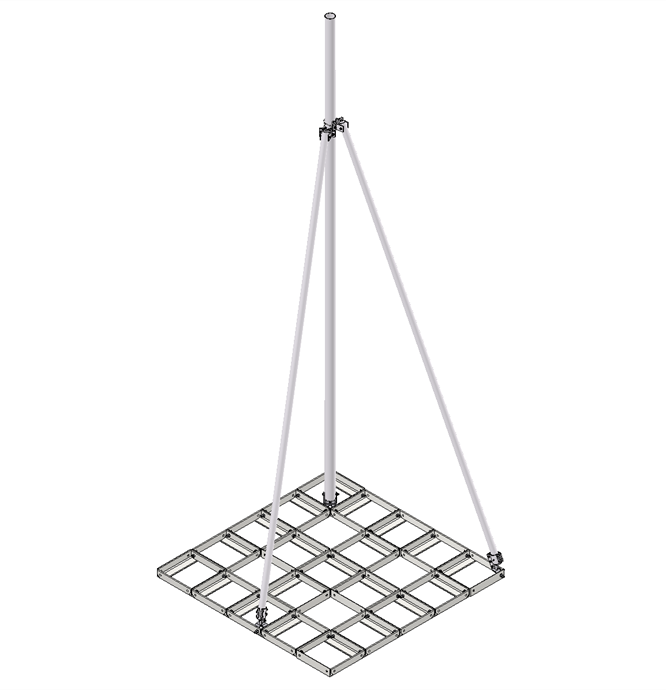

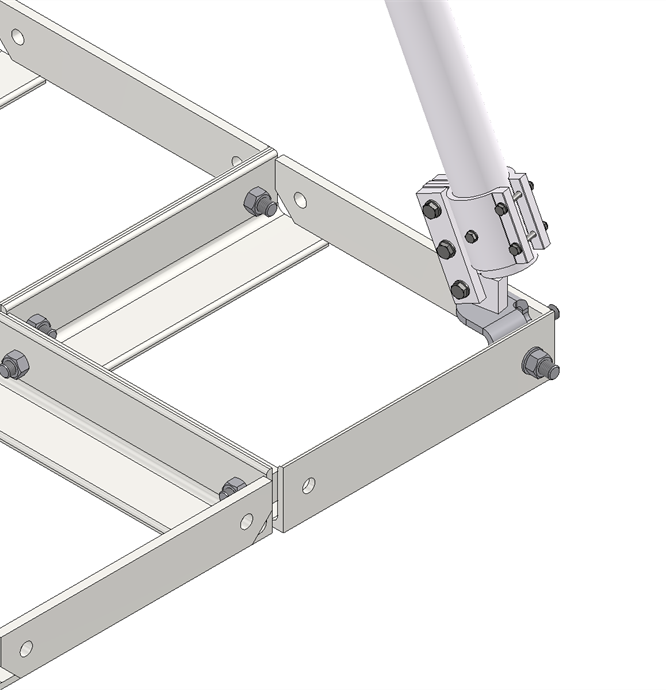

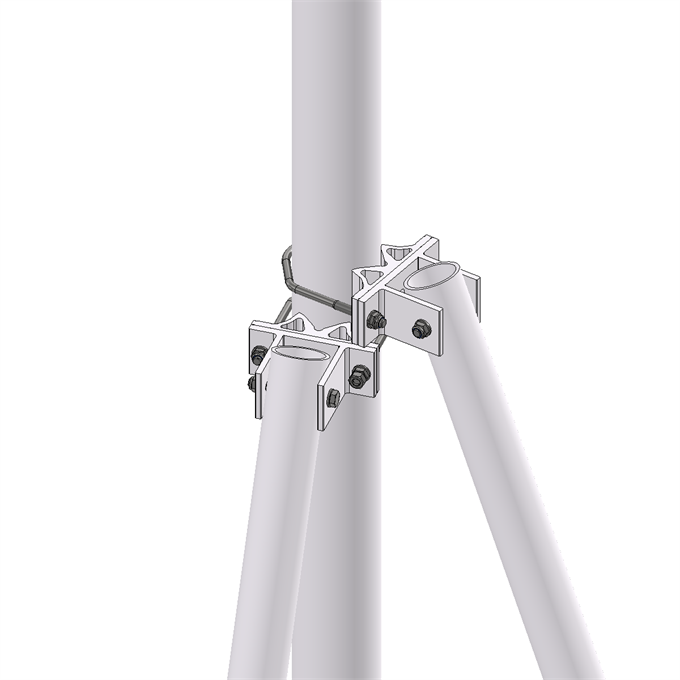

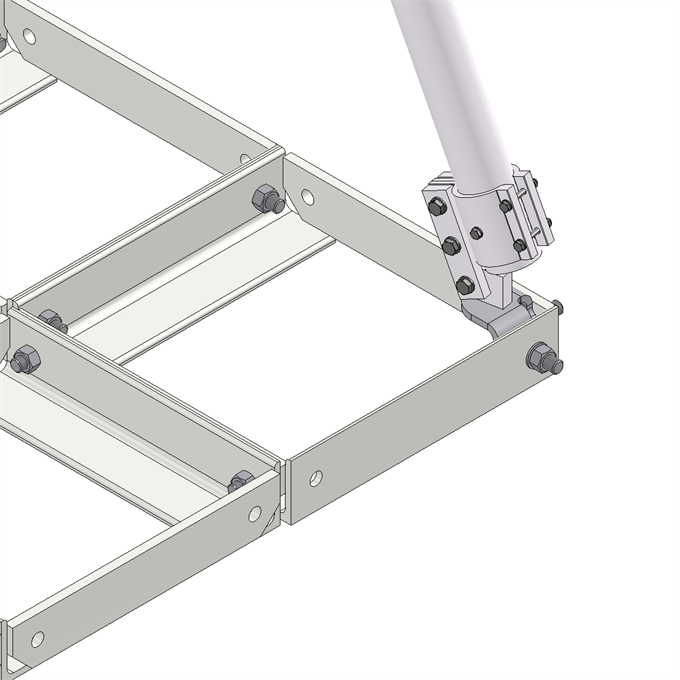

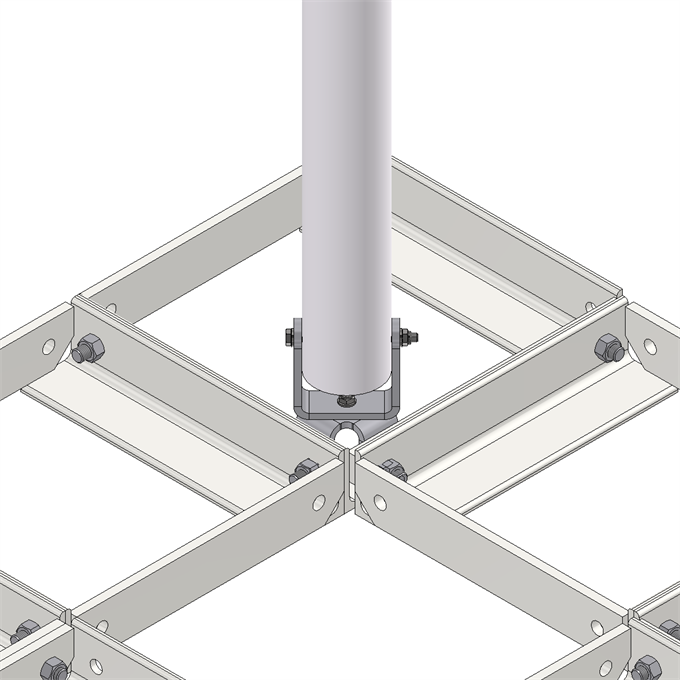

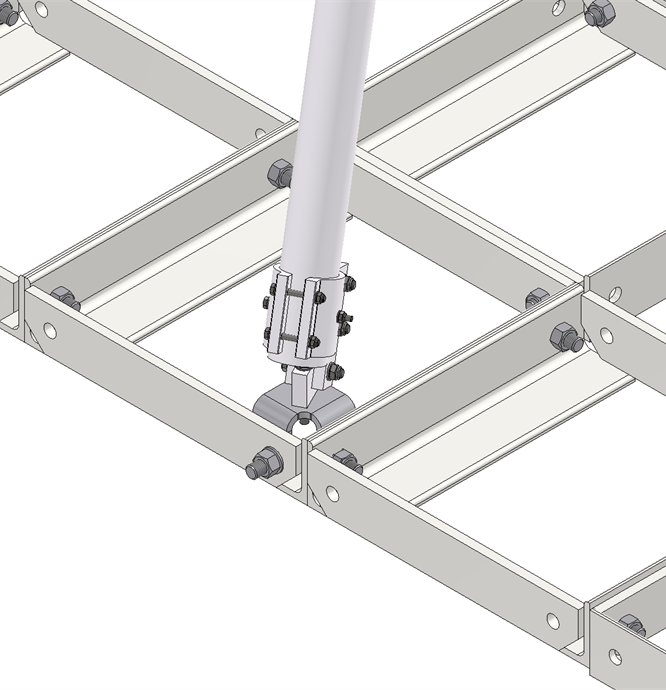

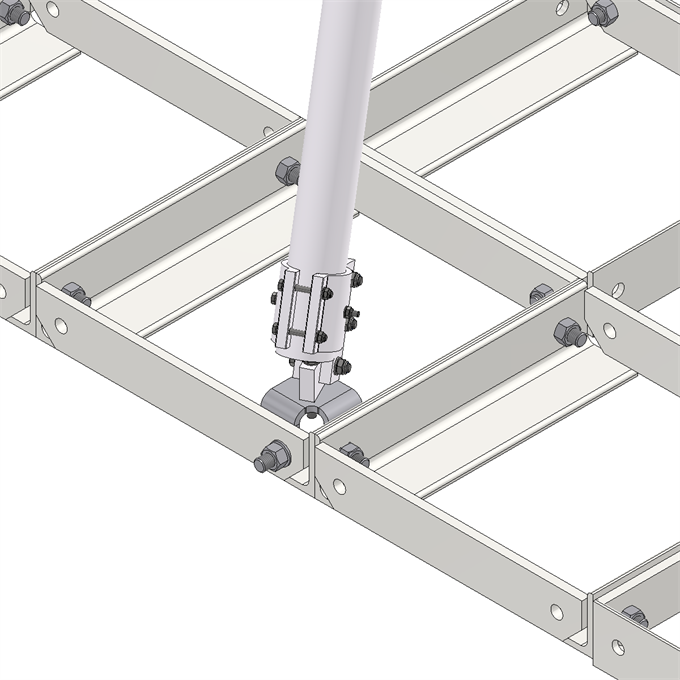

The antenna bearing superstructure consists of a dipod with a 6 meter high main pole and two struts that are made from light weight anodized aluminum tubes connected with acid proof stainless steel fasteners.
The materials used offer an outstanding corrosion resistance also in harsh marine environments.
Main Pole Height
6 m
Main Pole Height above roof surface
6,137 m
Main Pole Diameter
114 mm
Stay Tubes
Ø75x3.5 mm
Weight of Structure
567 kg
Horizontal Footprint
6,25 m²
Number of Ballast Boxes
21 pcs
Maximum roof inclination without slide protection
6°
Material used in structure
Aluminium (anodized 25um)
Stainless Stell A4
HDG Galvanized steel
