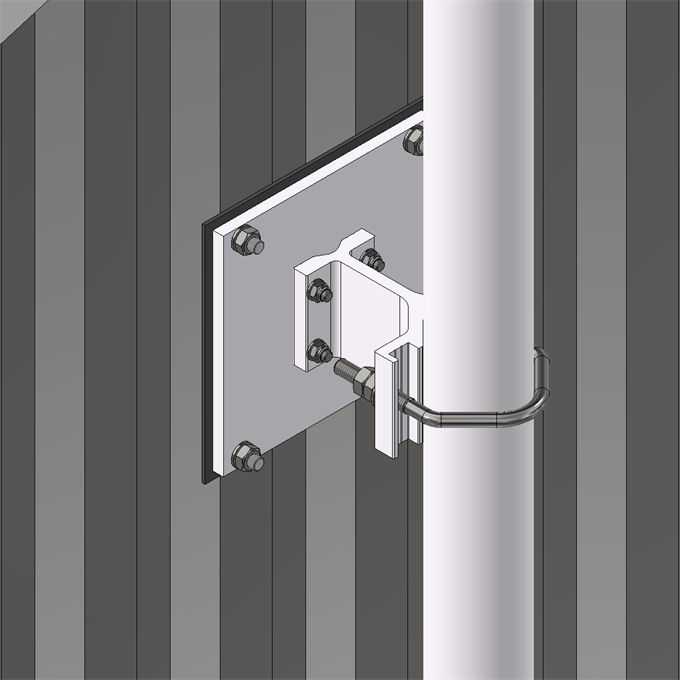

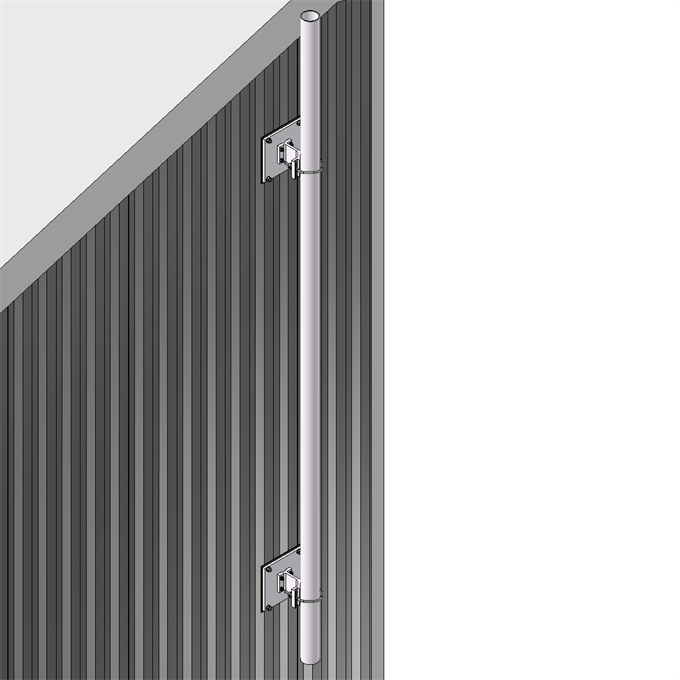

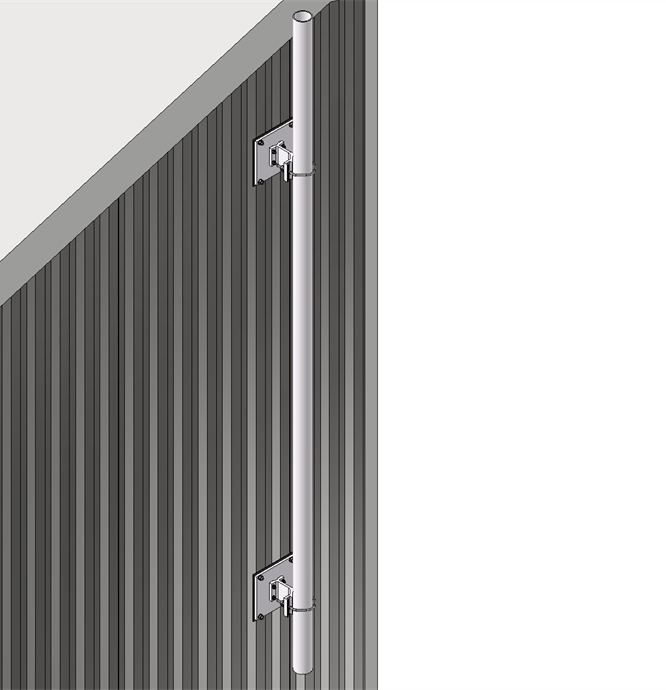

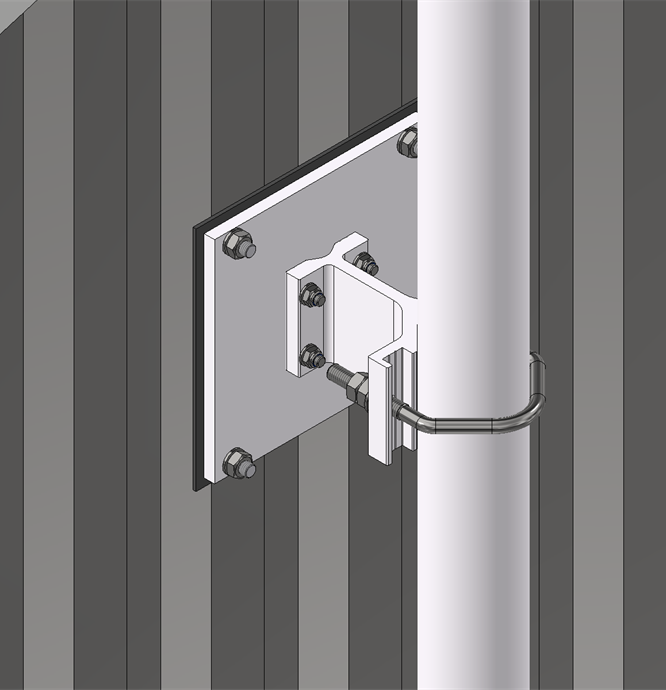

3m/75mm wall mount with roof mounted radio support

Solution ID: SD01296

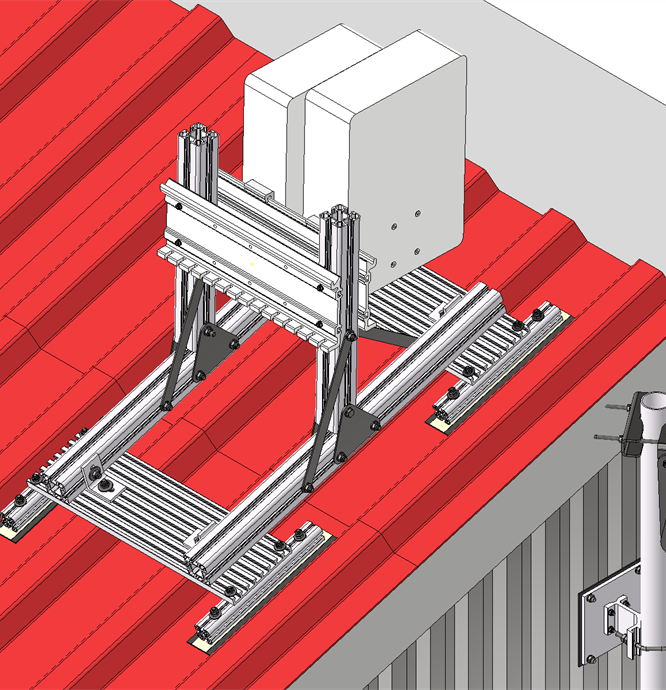

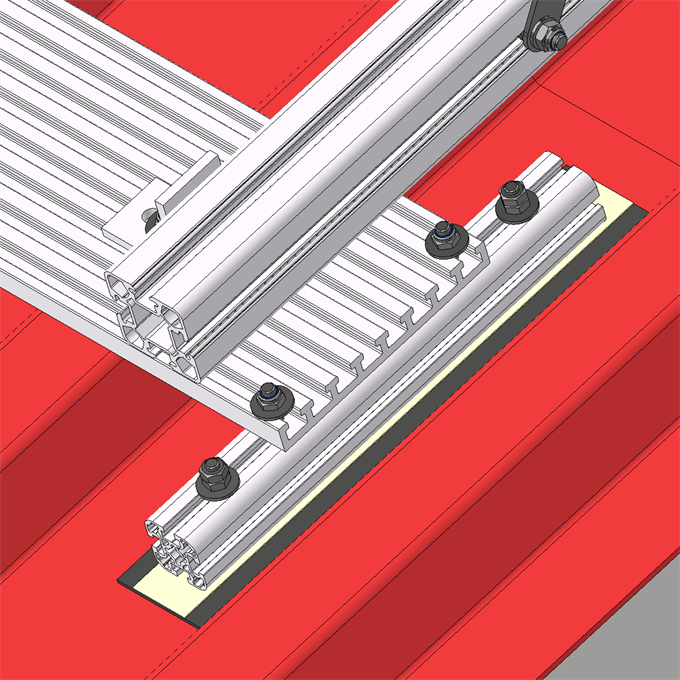

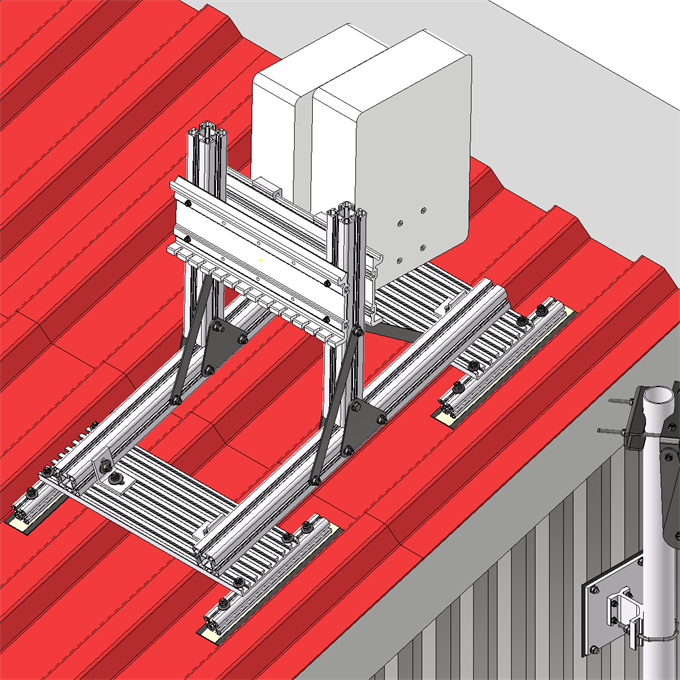

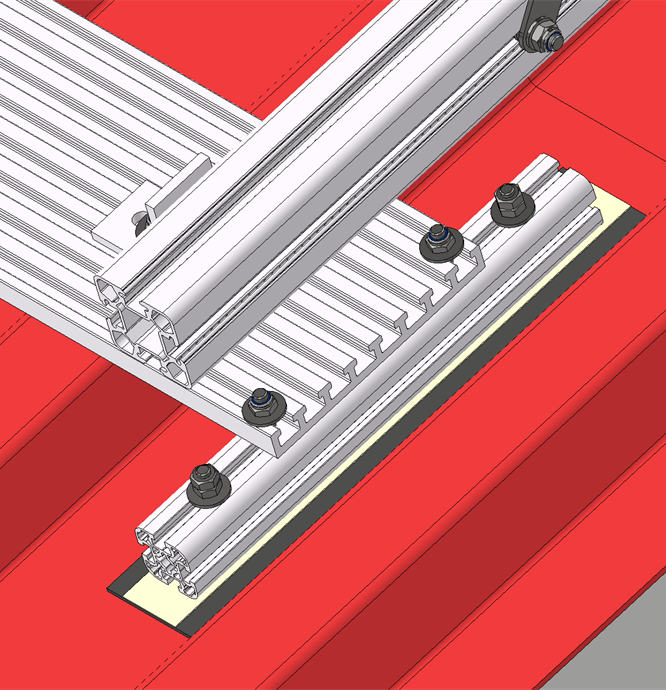

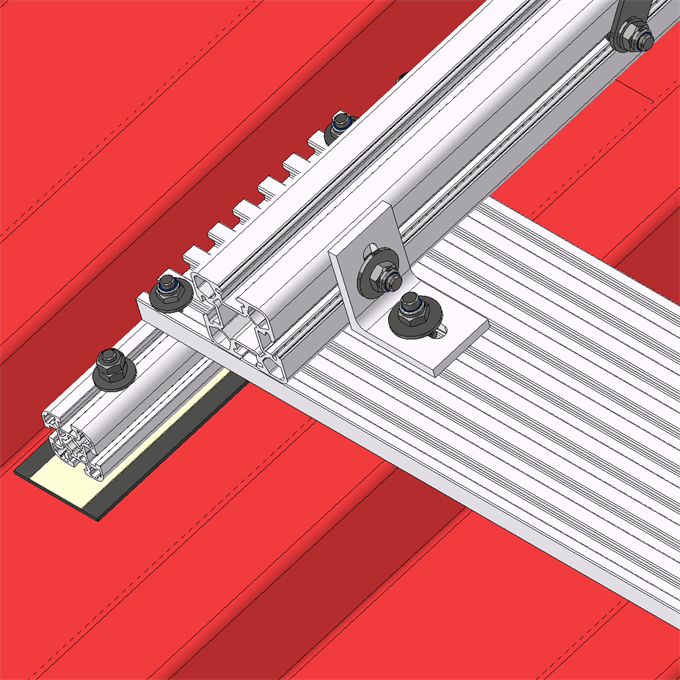

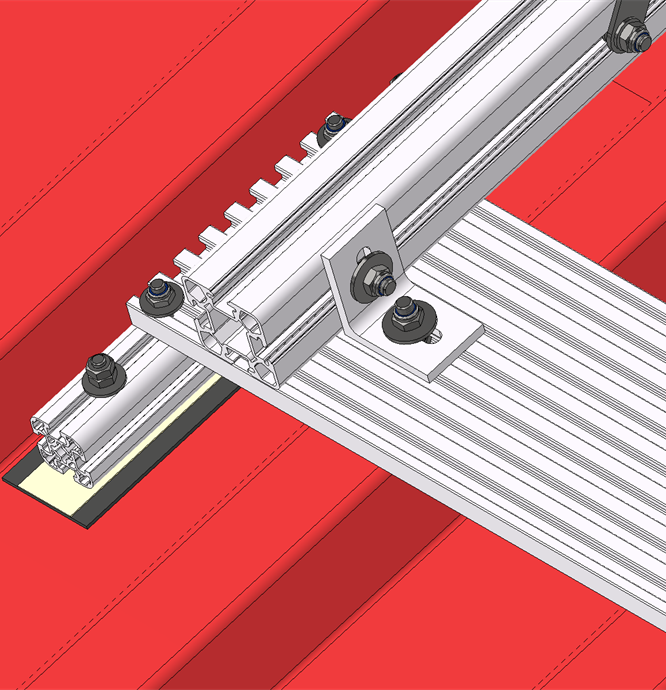

Sector mount solution for panel antennas with optional roof mounted radio support.

Made from anodized extruded aluminium with acid-proof stainless steel fasteners.

This is a customized solution delivered to multiple clients, verified according to Euro-Code standards and delivered as a complete kit - ready to install. We can customize this solution to your individual requirements.

Technical Data

  • Main Pole Height

    3 m

  • Main Pole Diameter

    75 mm

  • Weight of RRU Butler

    41 kg

  • Weight of Antenna Support

    12 kg

  • Material used in structure

    Aluminium (anodized 25um)
    Stainless Stell A4

Custom Design
Design Verification
