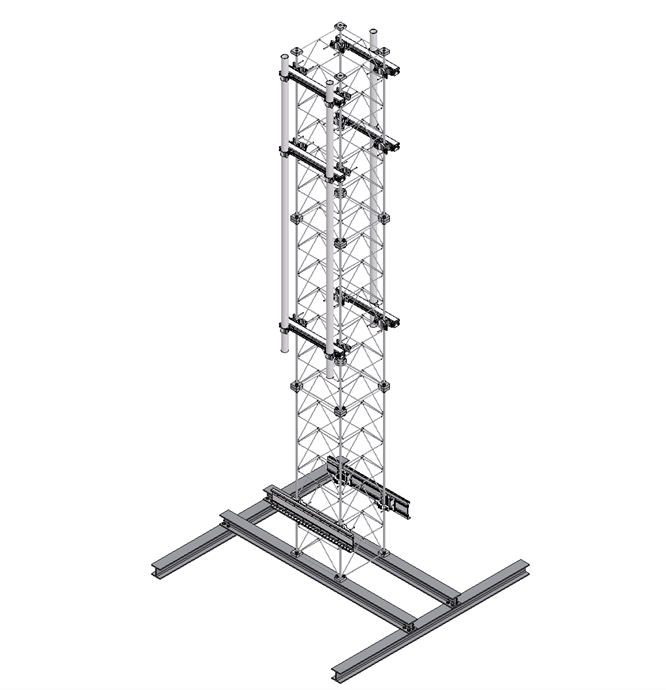

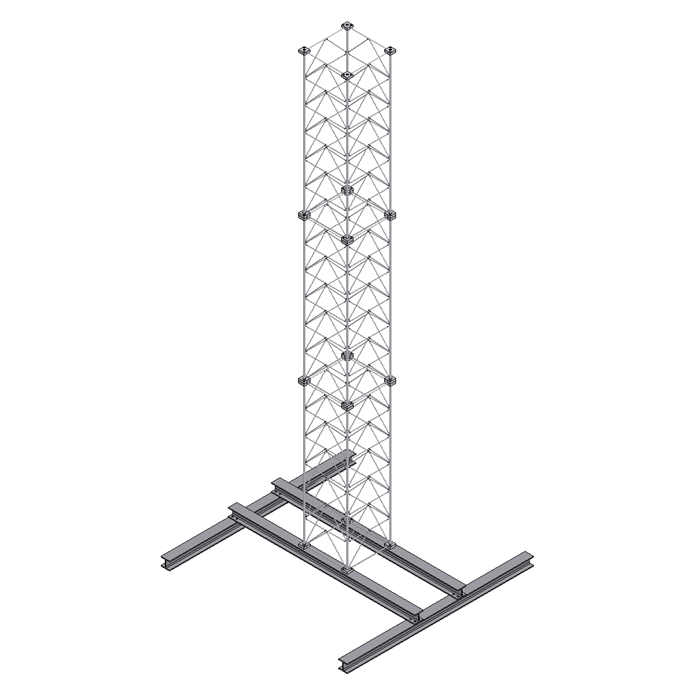

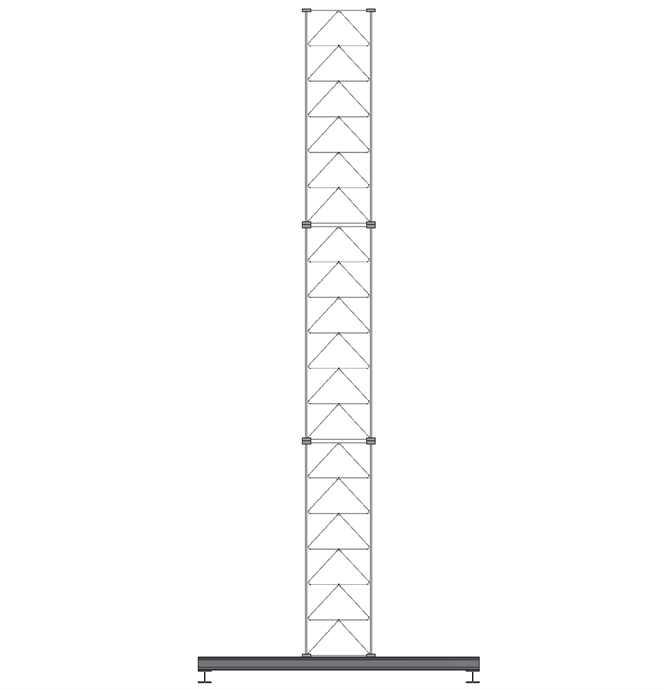

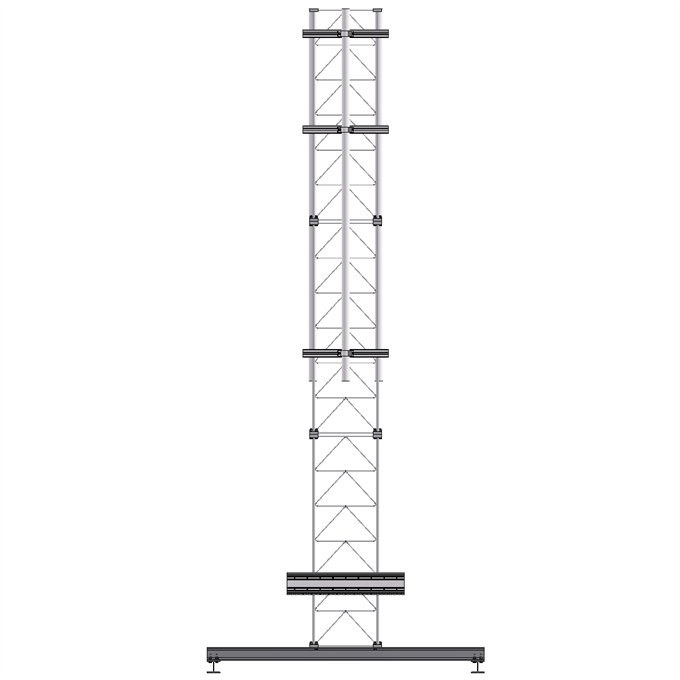

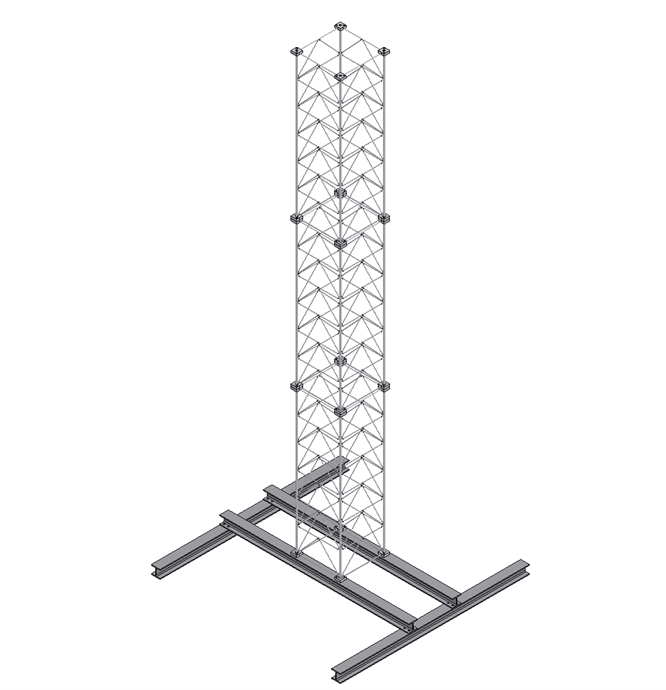

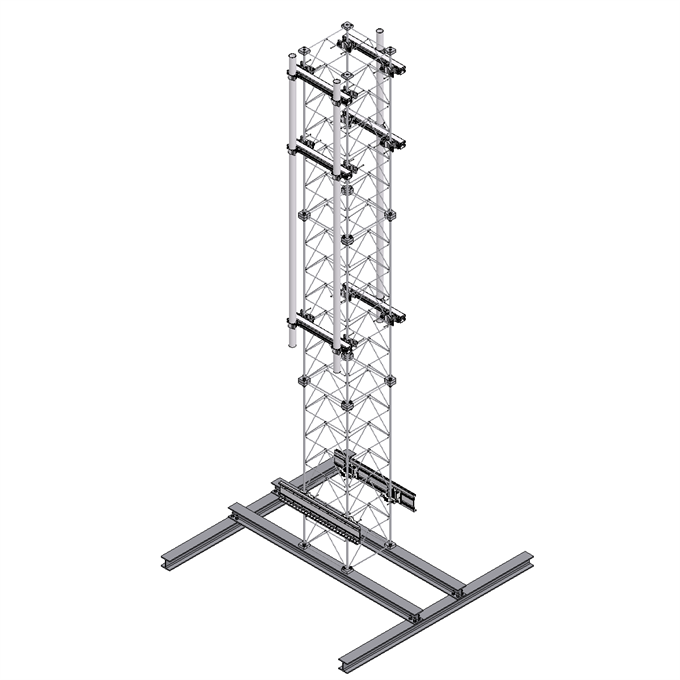

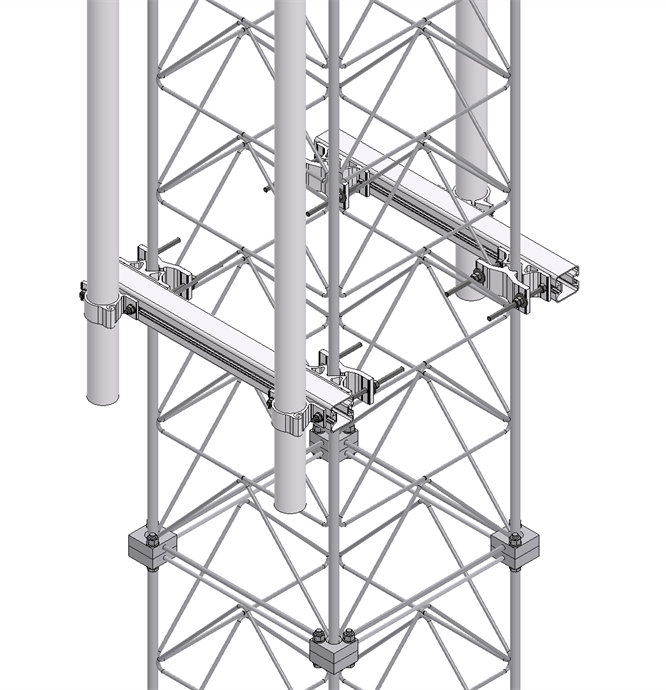

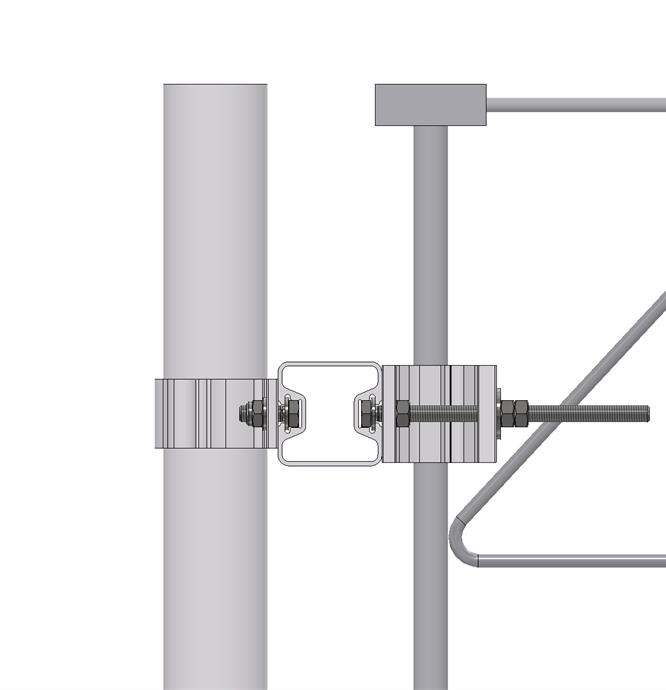

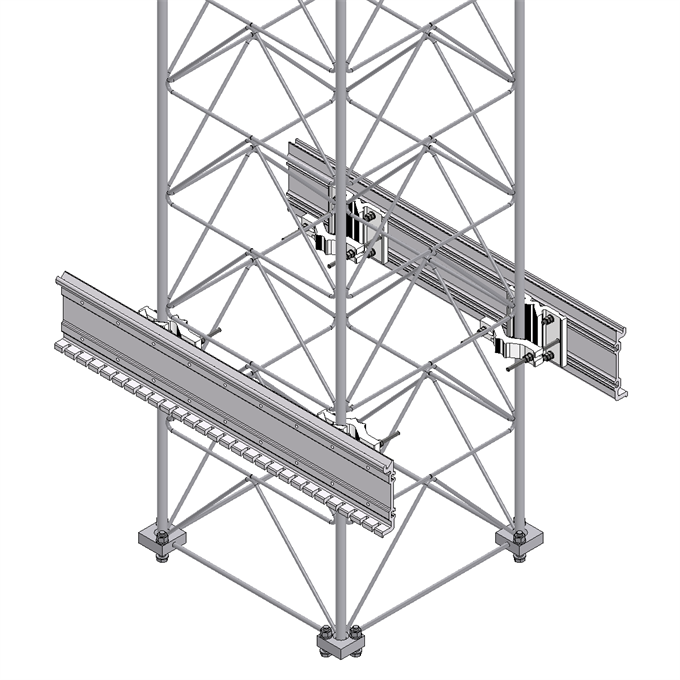

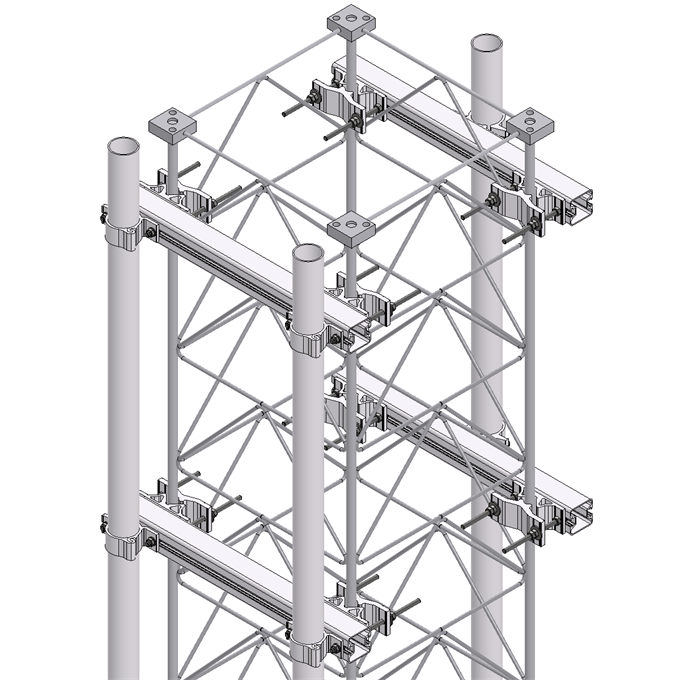

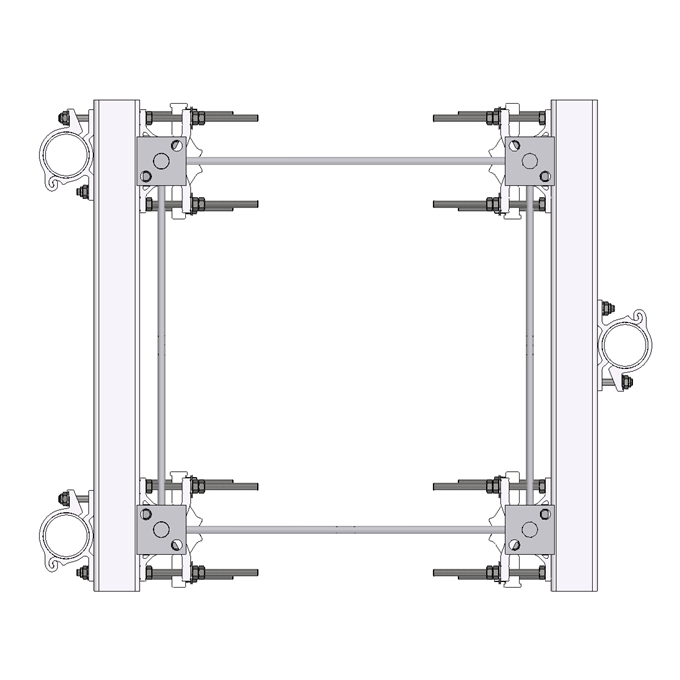

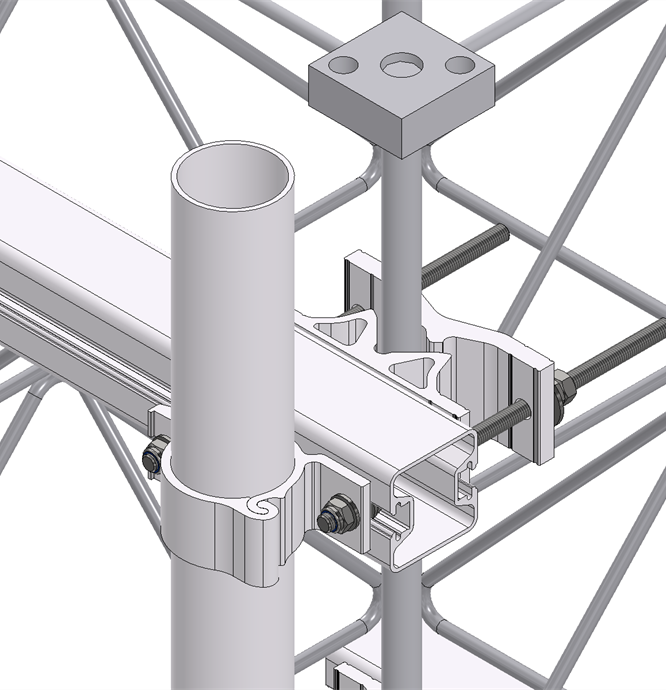

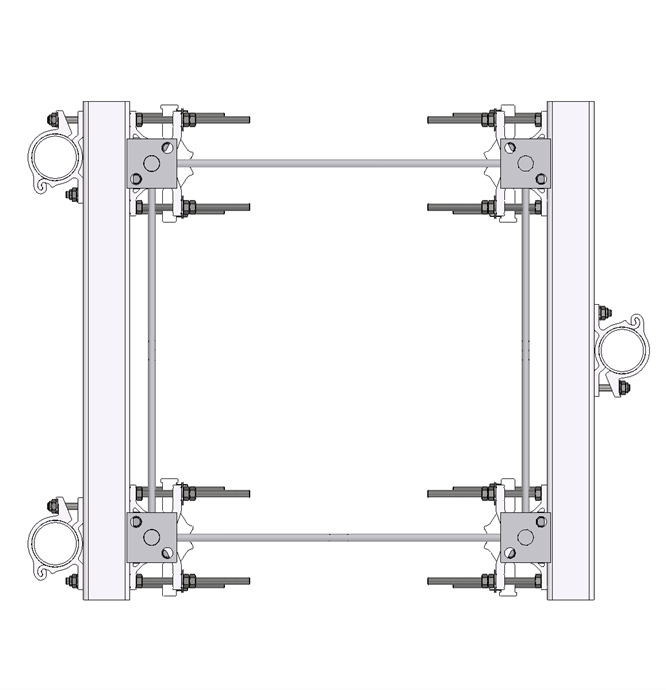

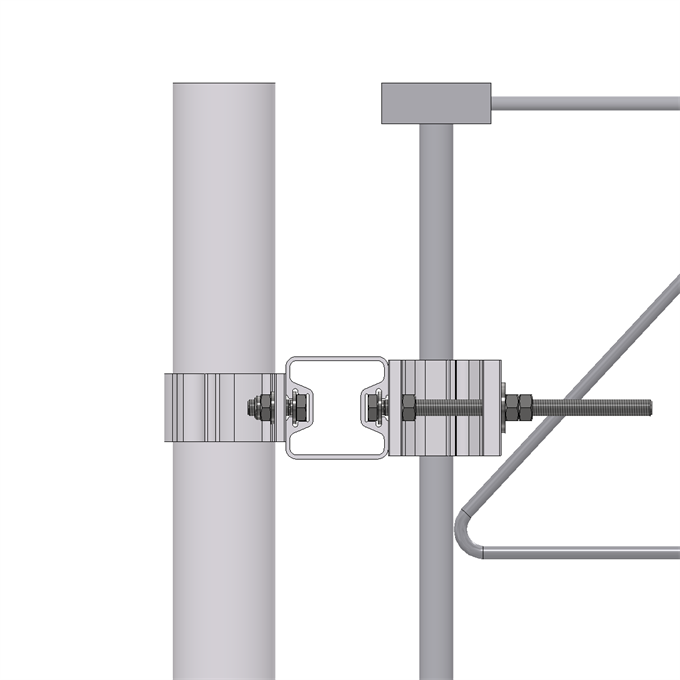

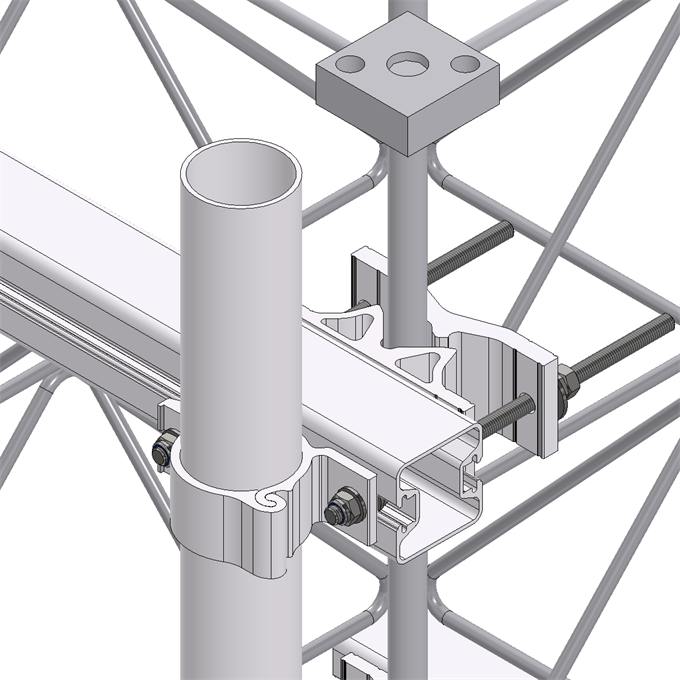

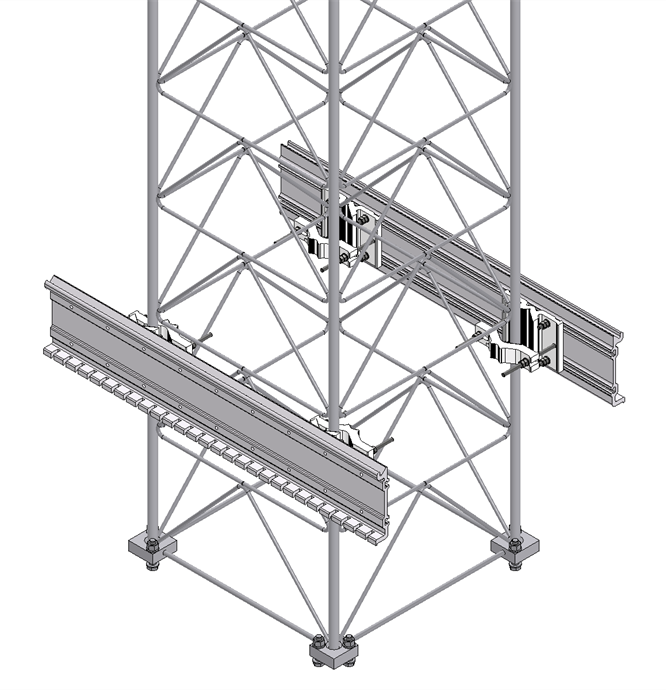

The 6-meter roof-top ballast stub-tower offers many advantages; the H-frame is just placed on the roof and requires no additional attachments or penetration of the roofs' surface.

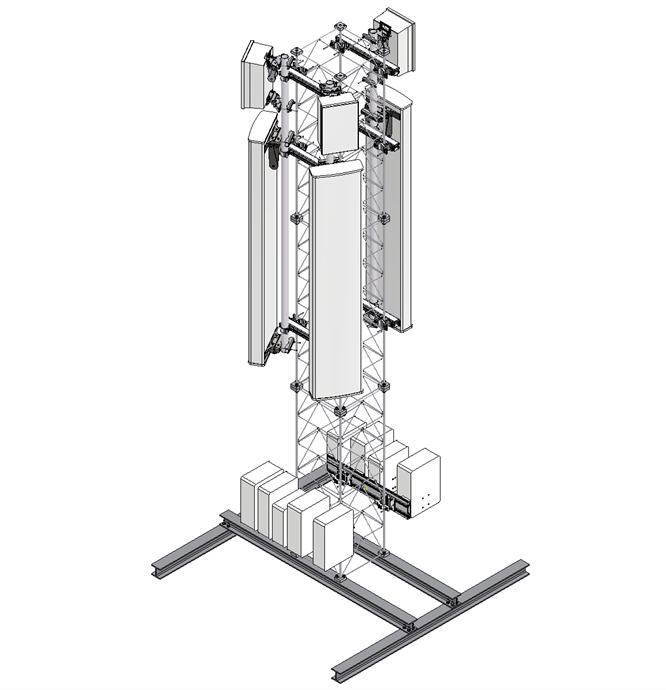

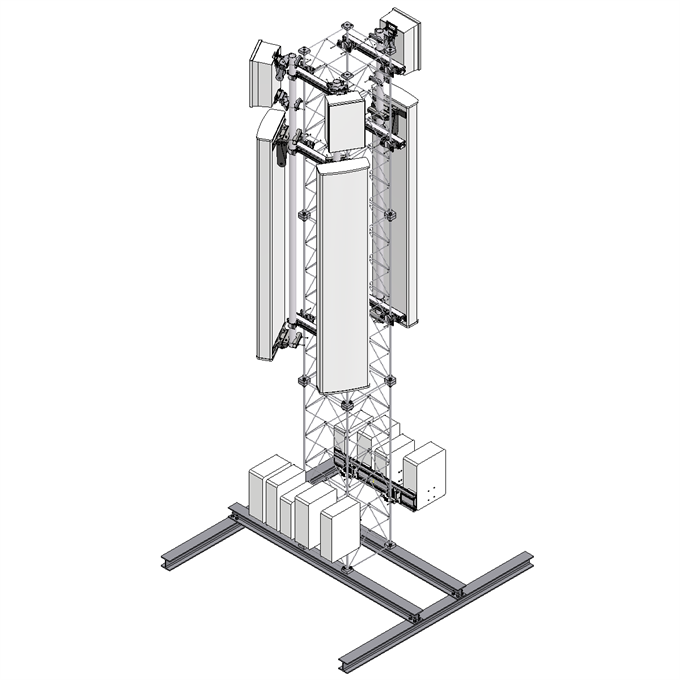

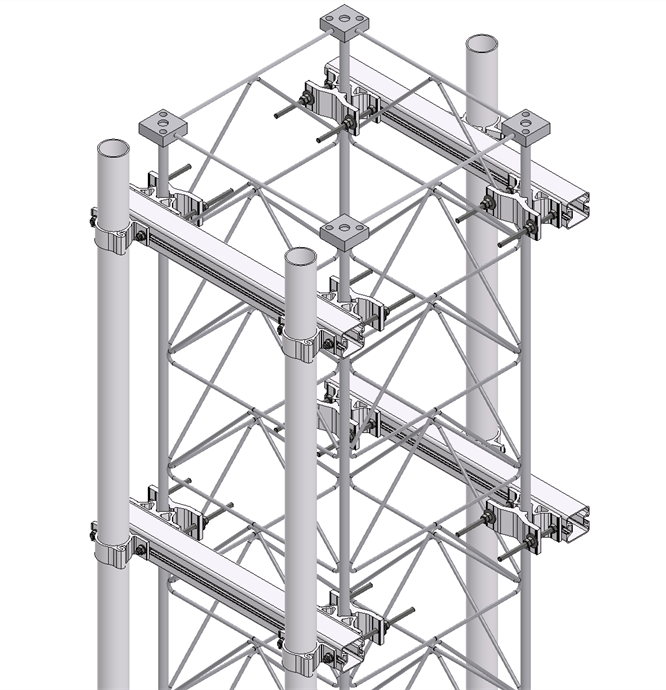

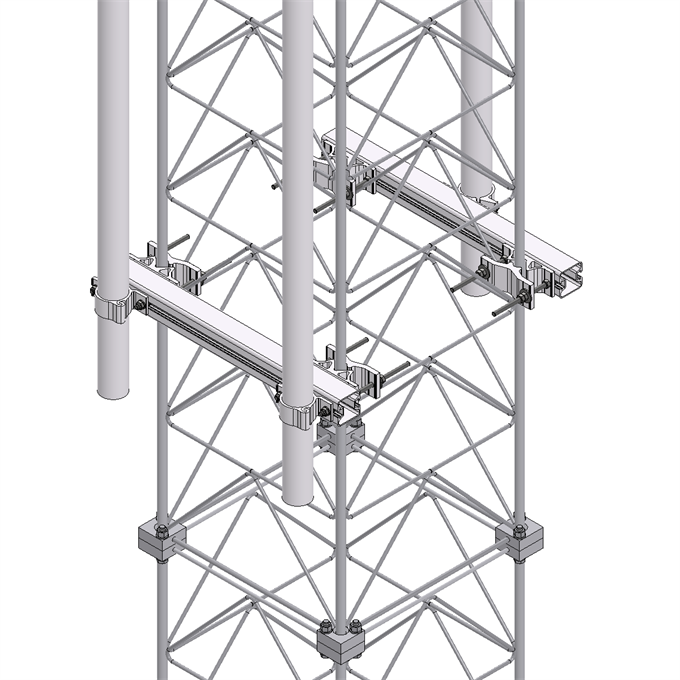

Weight and size needs to be calculated and sized, securing if the solutions is sufficient to manage the wind-load of a typical 3-sector urban site.

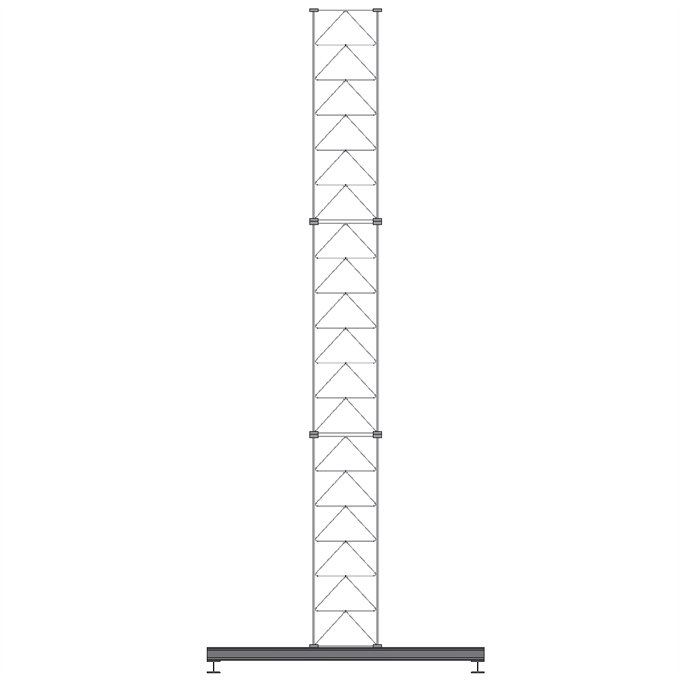

Each tower section is 2 meters long and has a 60 cm x 60 cm cross section, similar in size to a standard fridge, and weighs only 77kg. The sections can easily be carried by two persons to the roof; through elevators and narrow passages.
This is a customized solution that CueDee has designed and delivered to a customer. It was verified according to Euro-Code and delivered as a "ready-to-install" kit. It can easily be adapted to meet your special needs and requirements.
Height
6 m
Segment Height
2 m
Mast Footprint
600 x 600 mm
Frame Legs
SR25
Number of Segments
3 pcs
Single segment weight
63,5 kg
Main Construction Weight
190,5 kg
Material used in structure
S355
HDG Galvanized steel
Bolts
Class 8.8
