Chain bracket link support, 1m pole

Solution ID: SD00788

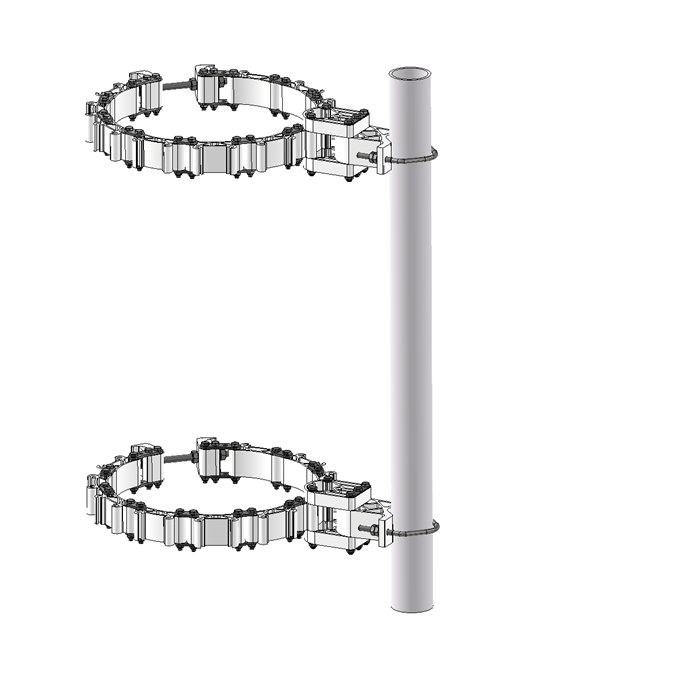

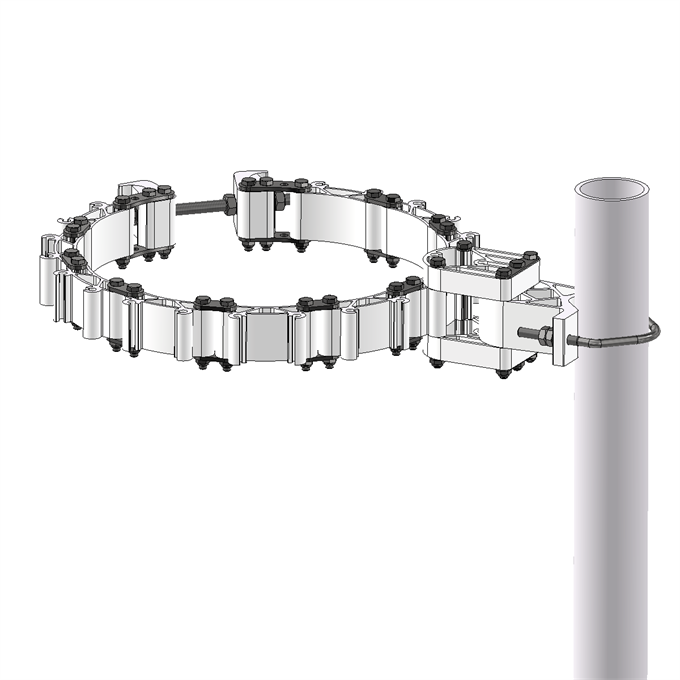

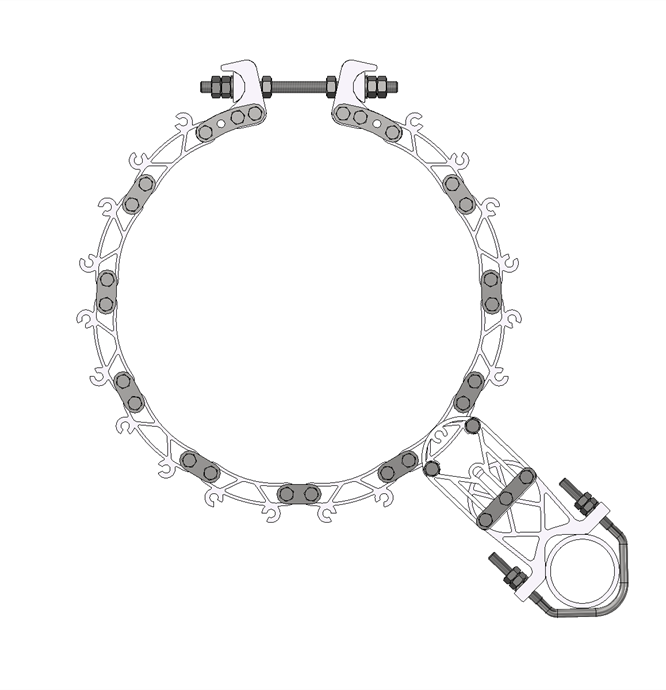

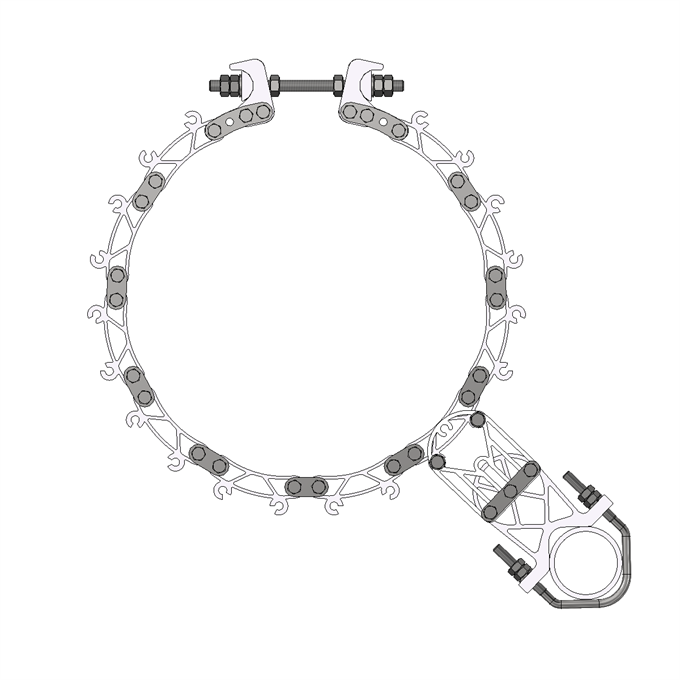

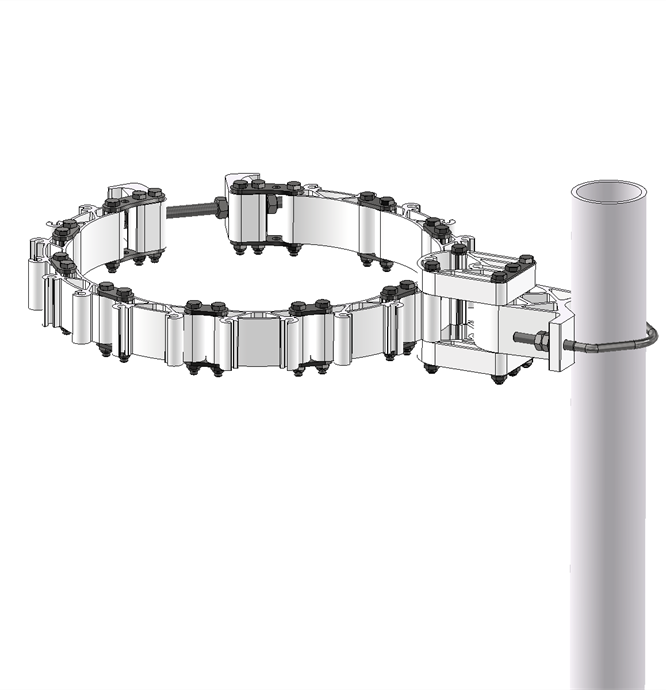

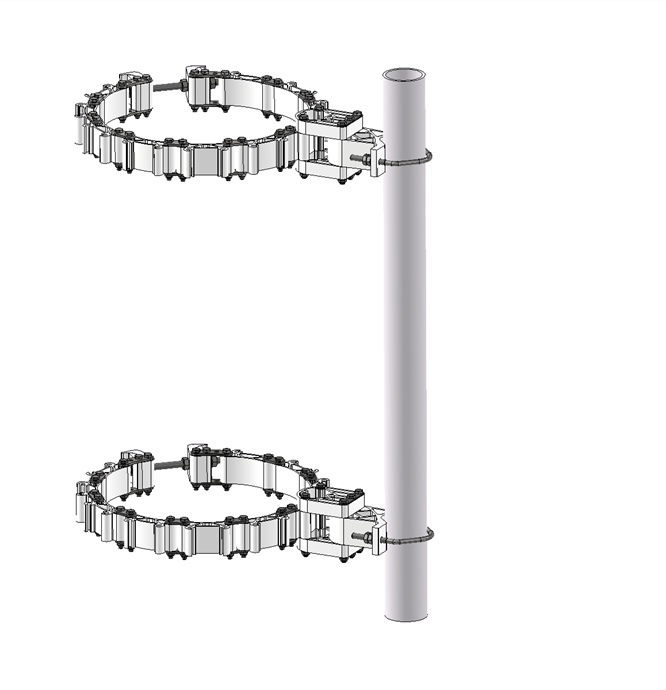

CueDee Chain Bracket link support can be installed on any pole from Ø110 mm up to Ø1070 mm. A wide range of accessory mounts are available for mounting tubes, RRU:s, filters etc.

CueDee Chain bracket can compensate for inclination when installing on conical monopoles or profiles.

This is a customized solution tailored in accordance with Euro-Code standards. Delivered as a "ready-to-install" kit.

CueDee Chain bracket exemplifies our dedication to deliver high-quality, practical solutions that seamlessly integrate with your existing setup, ensuring functionality and efficiency.

Technical Data
  • Main Pole Height

    1 m

  • Main Pole Diameter

    75 mm

  • Weight of Structure

    14 kg

  • Monopole diameter in this particular solution

    360 mm

  • Main pole offset from monopole

    215 mm

  • Material used in structure

    Aluminium (anodized 25um)
    Stainless Stell A4

Custom Design
