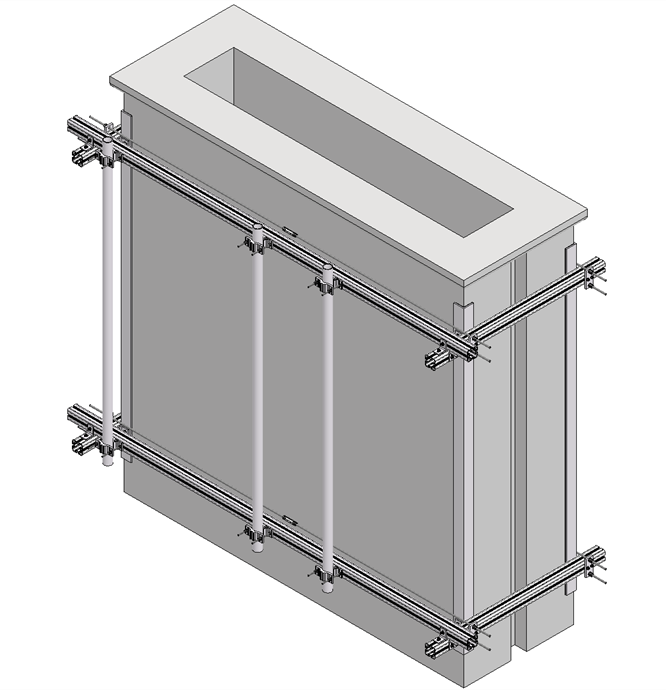

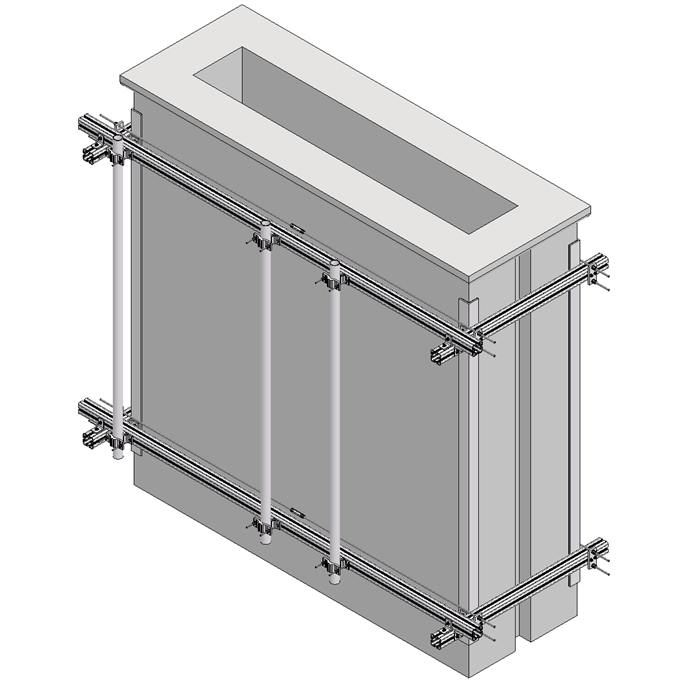

Chimney mounts are highly customized solutions and must be adapted to the dimensions and characteristics of the particular chimney where it is installed.

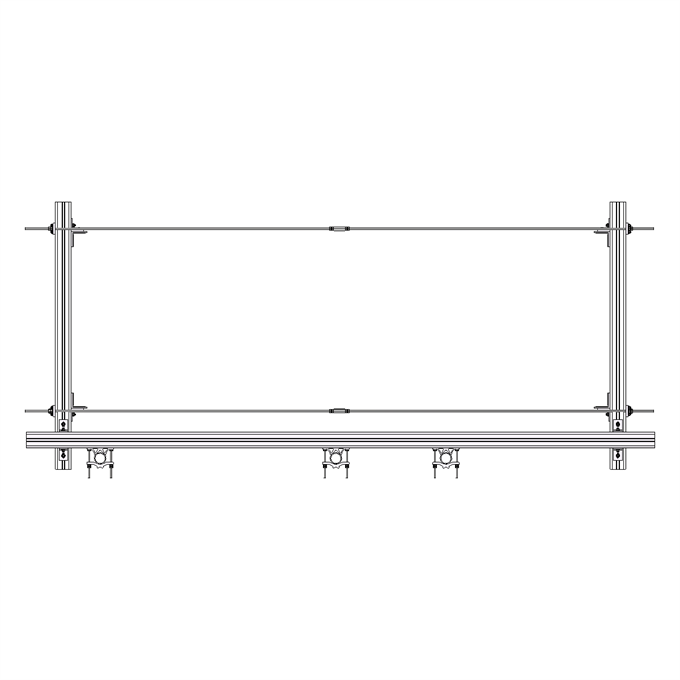

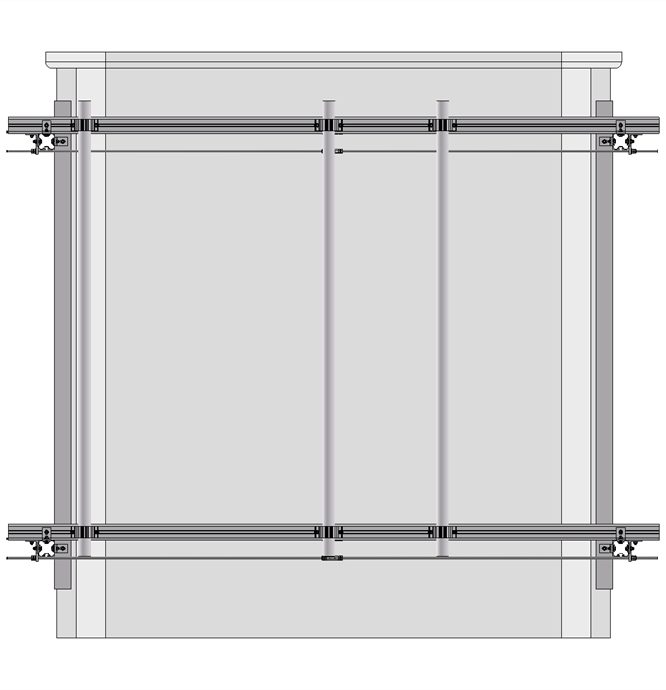

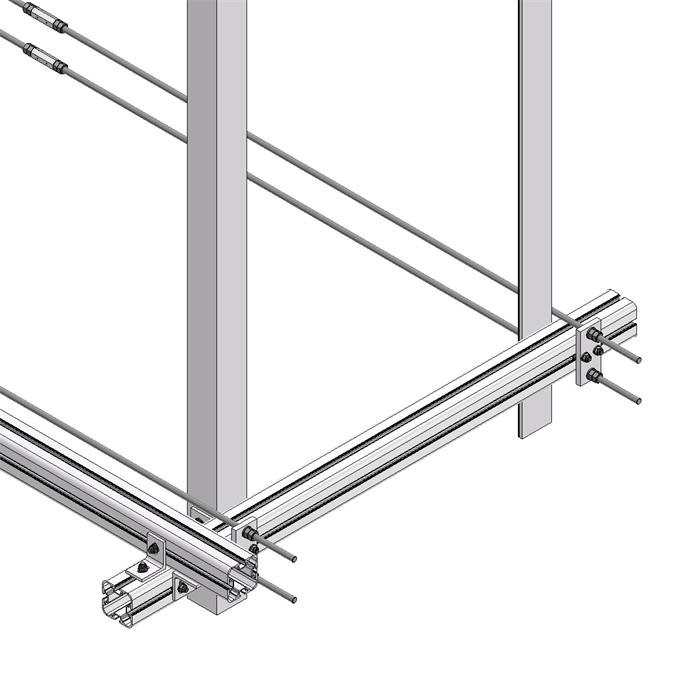

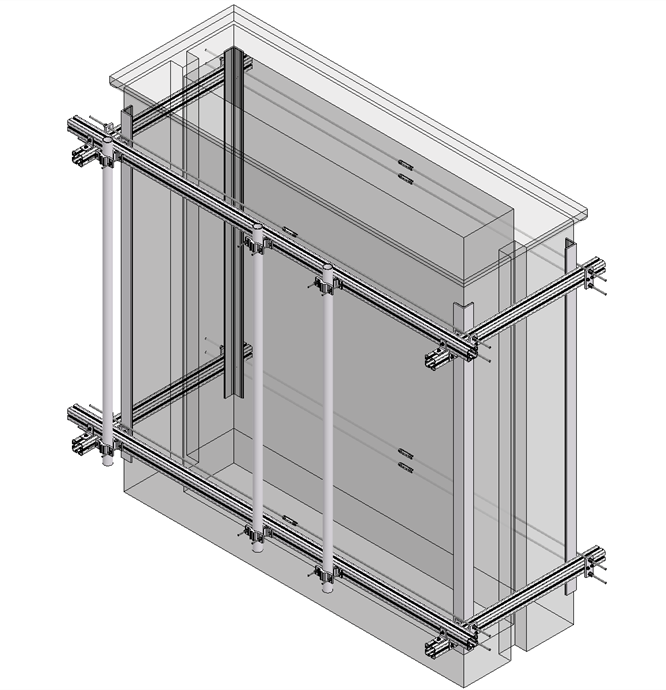

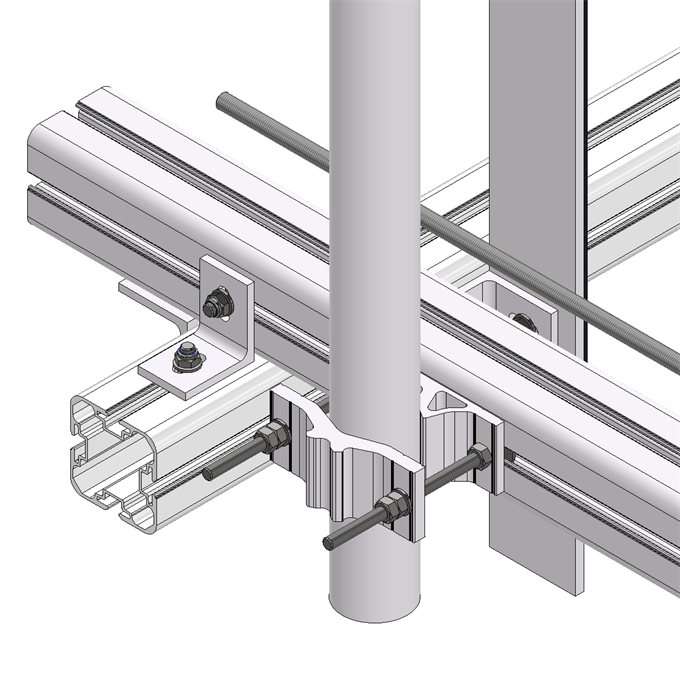

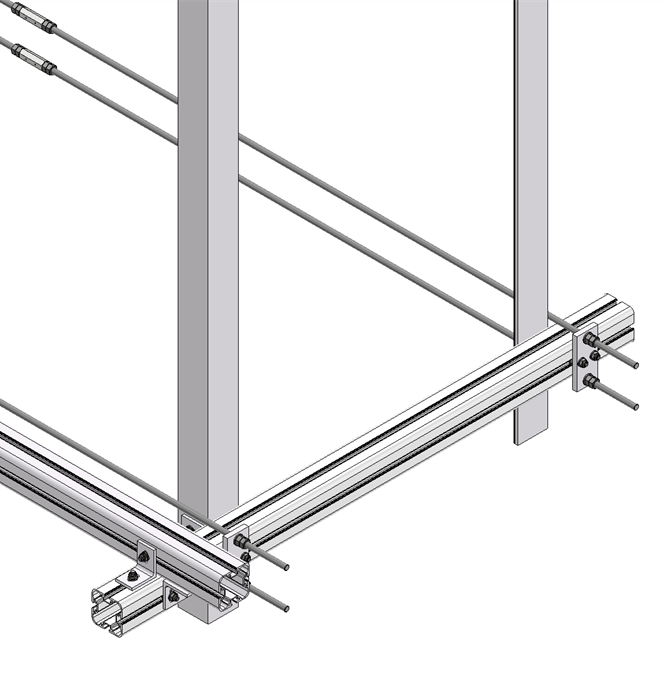

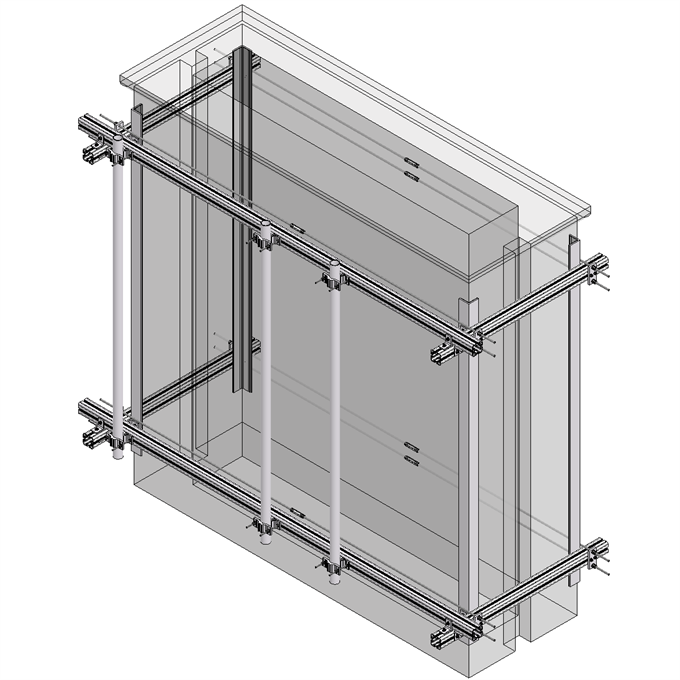

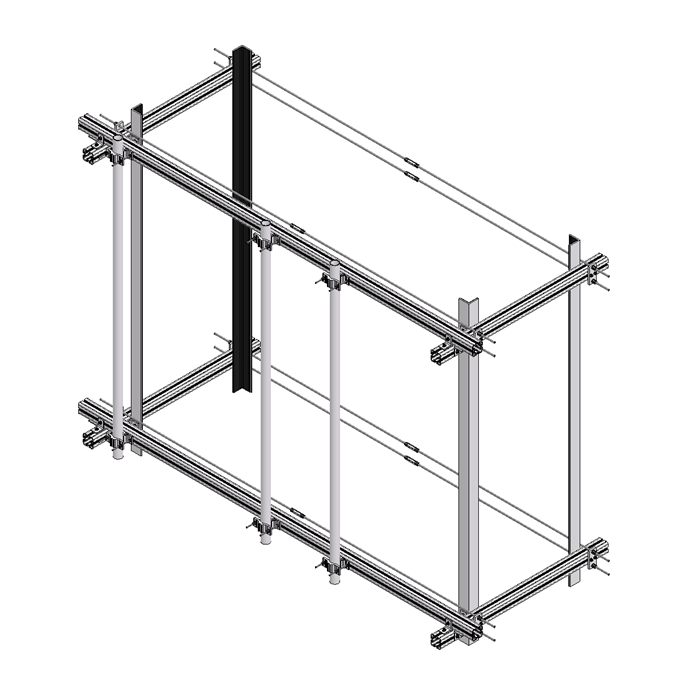

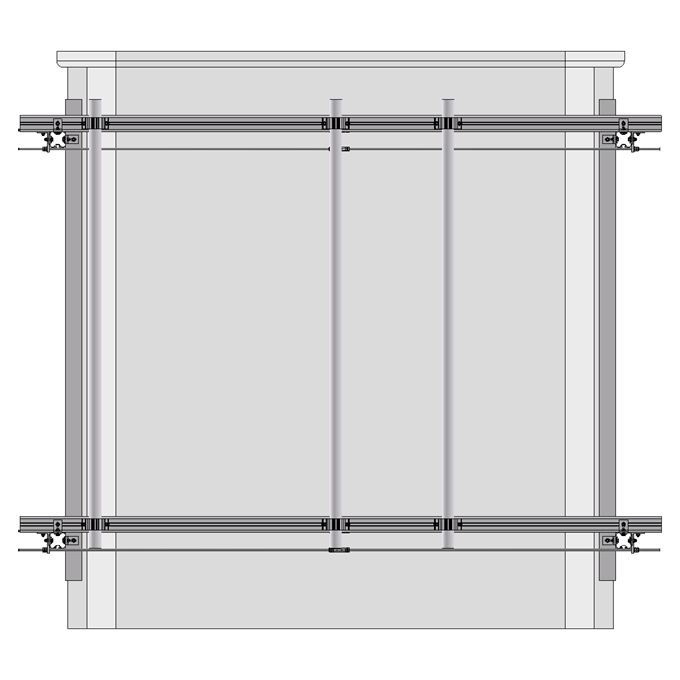

The structure is clamped on the chimney with a vice like grip that effectively distributes the compression forces across the chimney's vertical corners to eliminate any point loads. Antenna bearers, radio supports or struts can then be mounted on horizontal beams on all four sides of the structure thus offering great flexibility for future growth.
The solution is made from naturally anodized extruded aluminium with acid proof stainless steel fasteners.
This is a customized solution that CueDee has designed and delivered to a customer. It was verified according to Euro-Code and delivered as a ready to install kit. It can easily be adapted to meet your special needs and requirements.
Main Pole Height
2,8 m
Main Pole Diameter
75mm
Chimney dimensions in particular solution (LxB)
3,4 x 1,1 m
Beams Horizontal distance
2,5 m
Material used in structure
Aluminium (anodized 25um)
Stainless Stell A4
