5m/114mm non-penetrating dual braced wall mount

Solution ID: SD01169

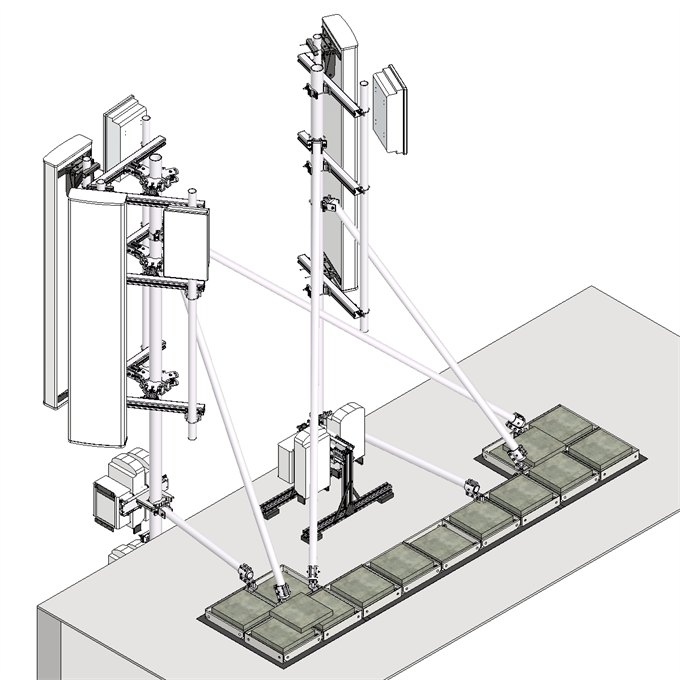

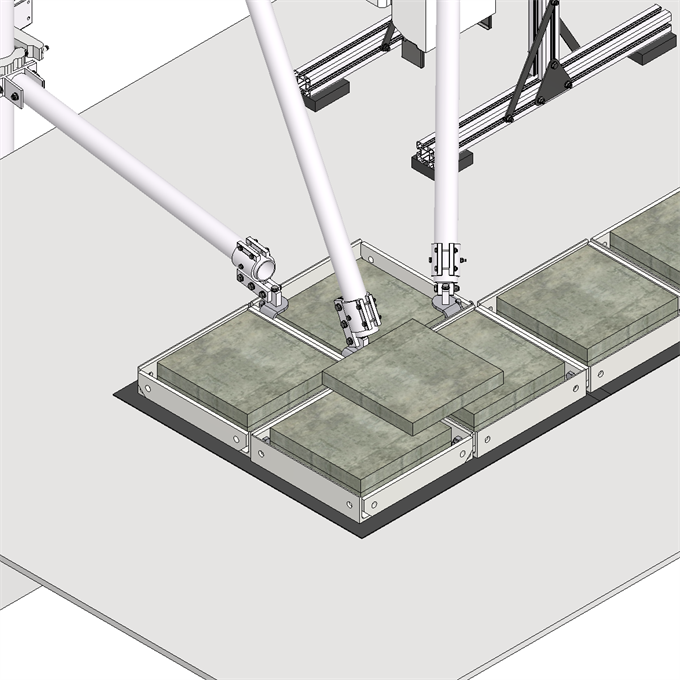

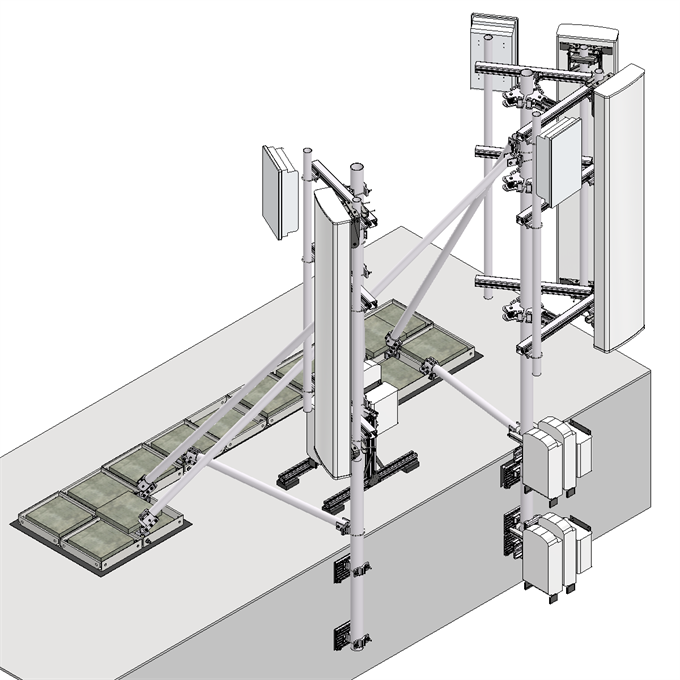

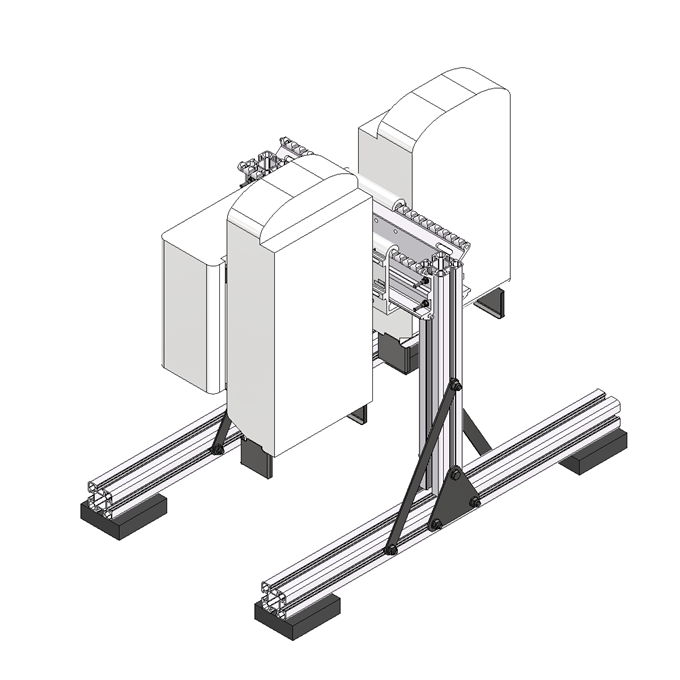

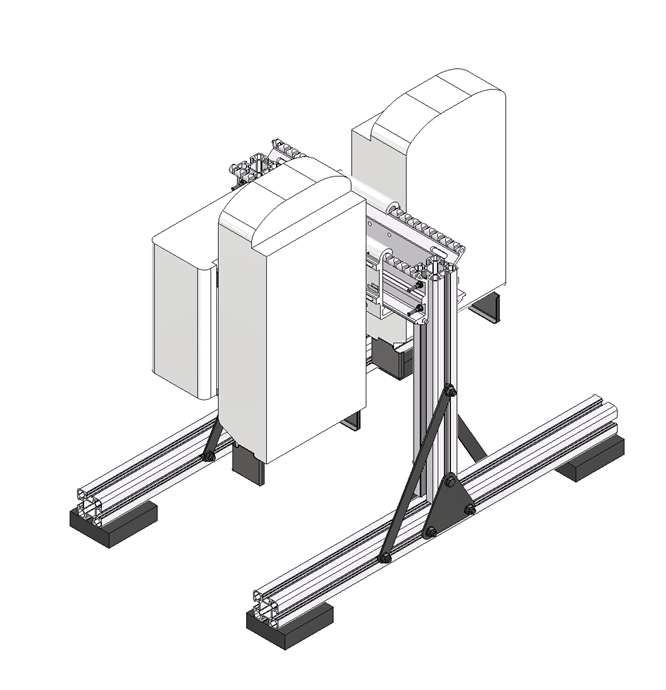

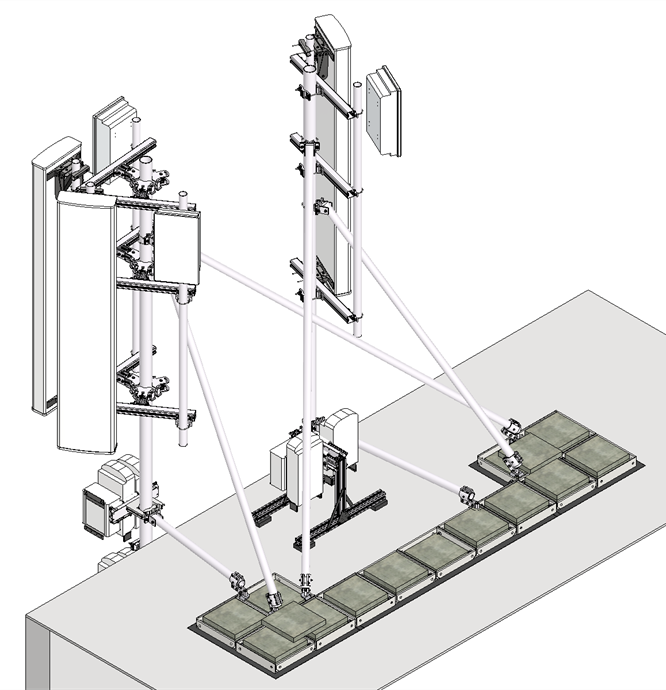

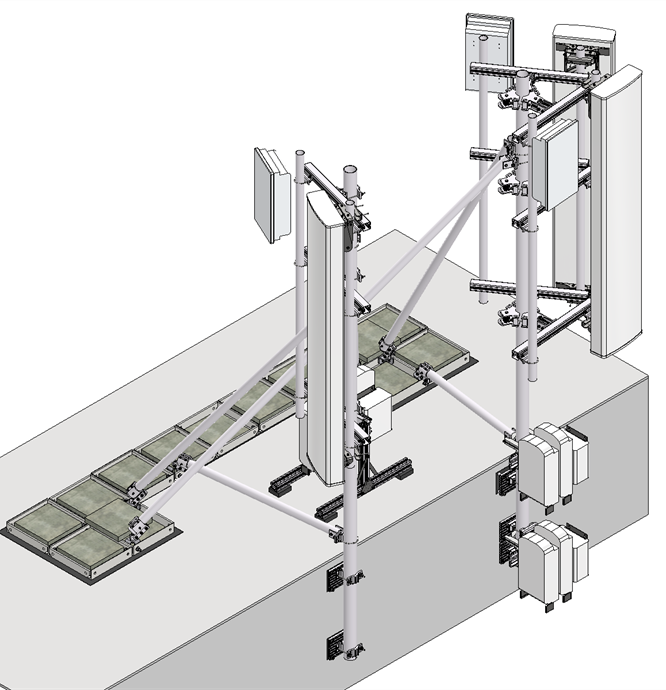

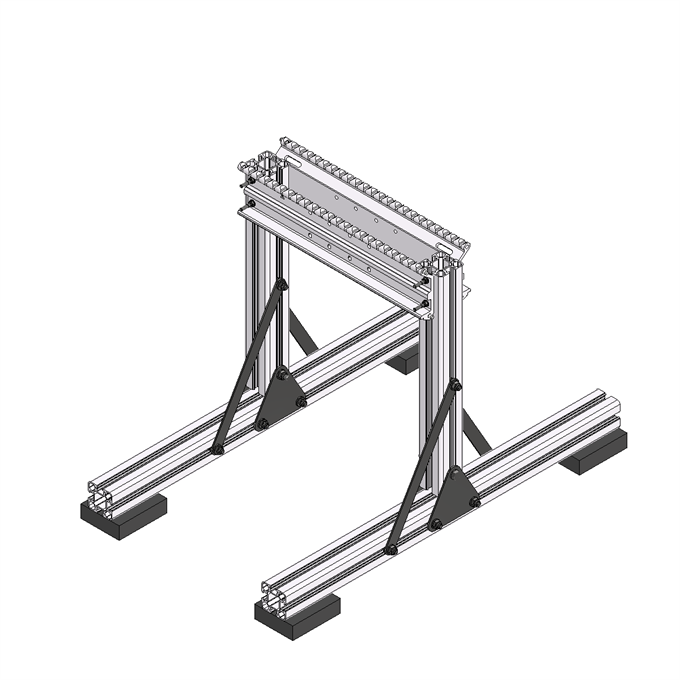

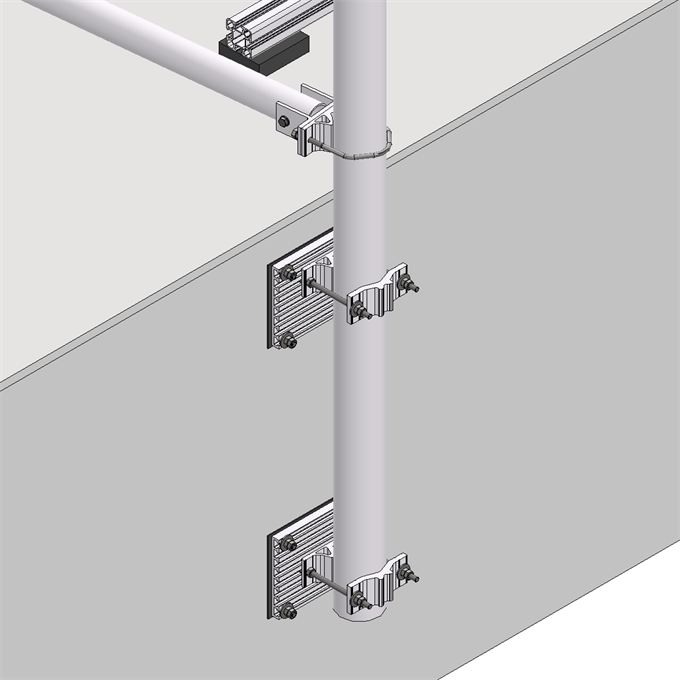

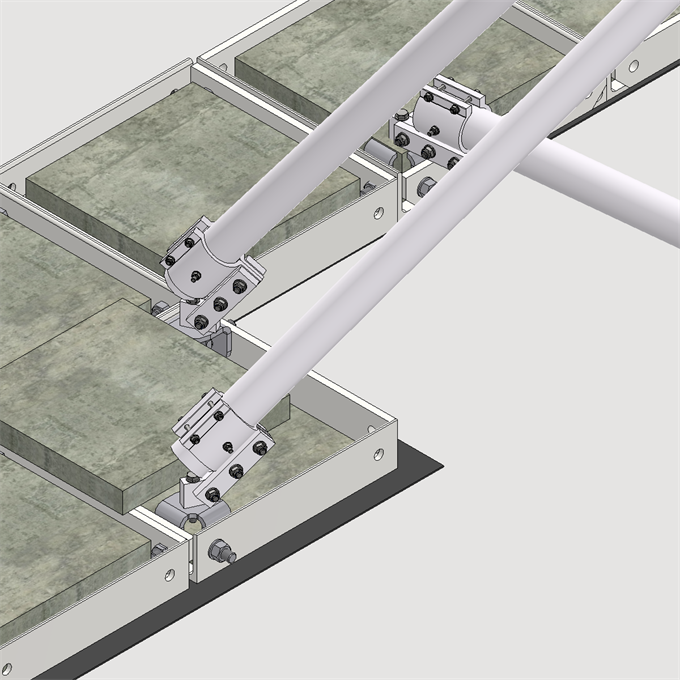

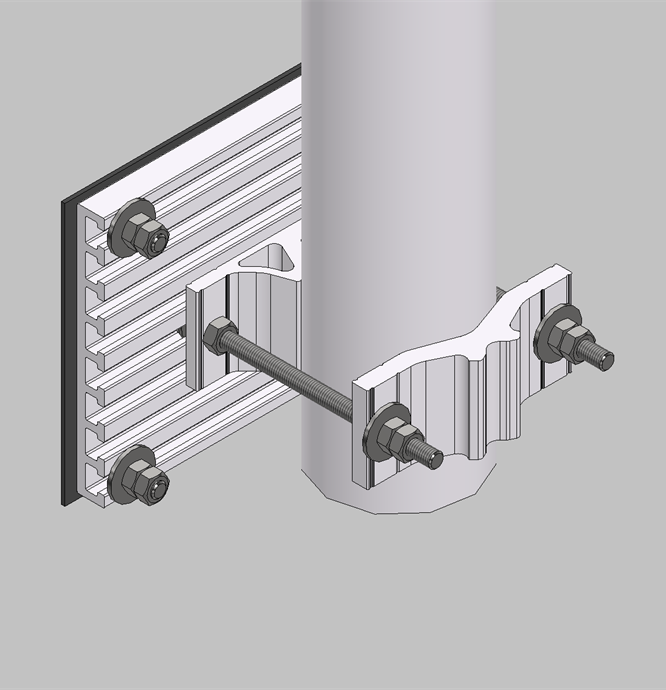

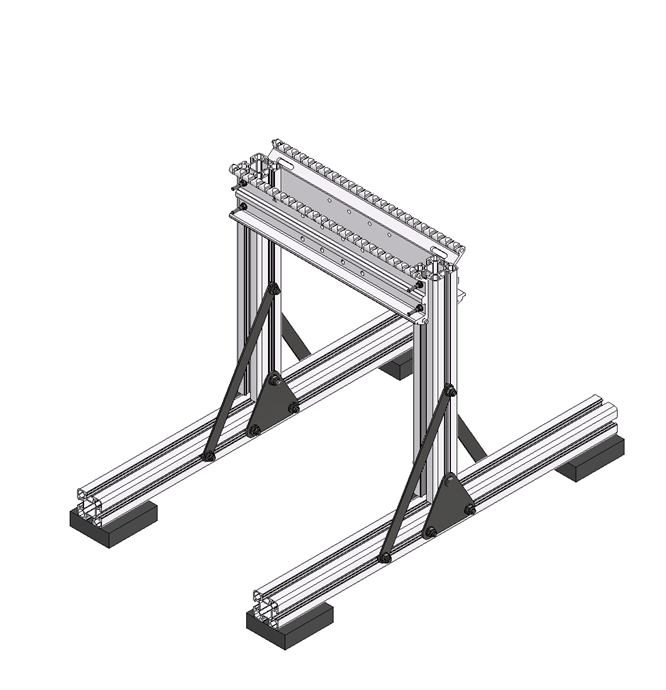

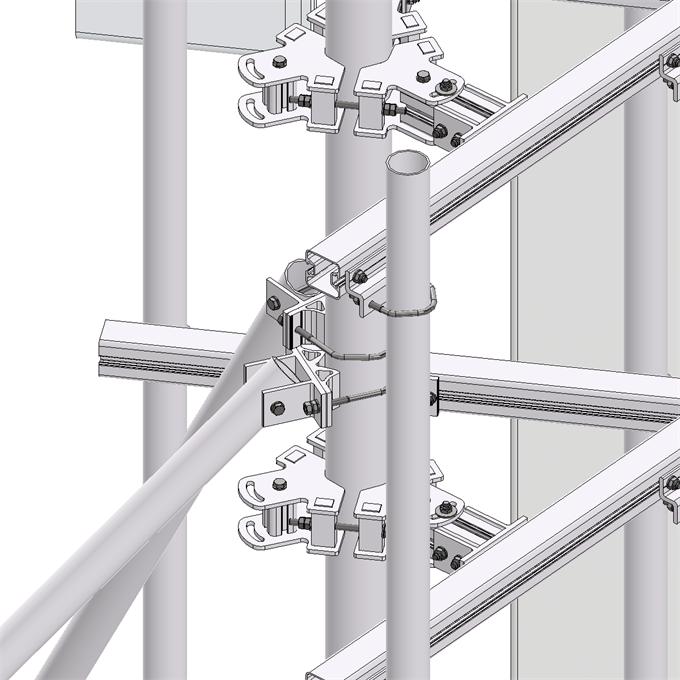

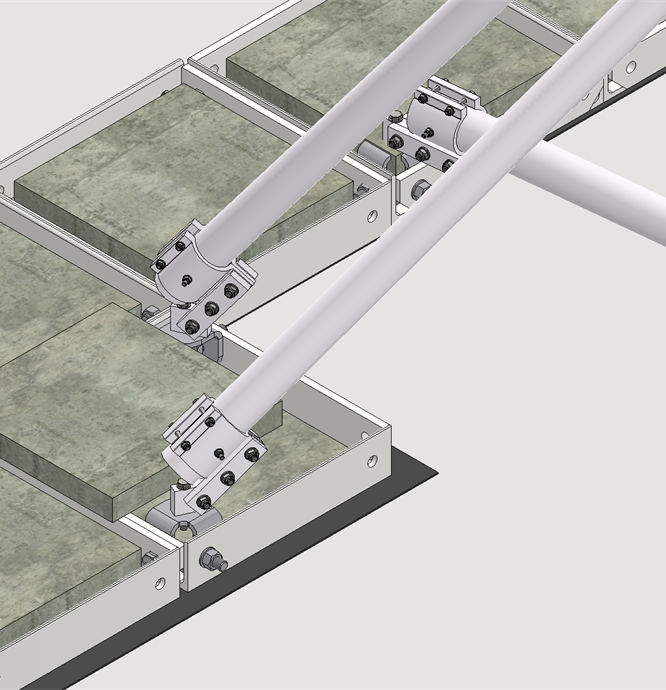

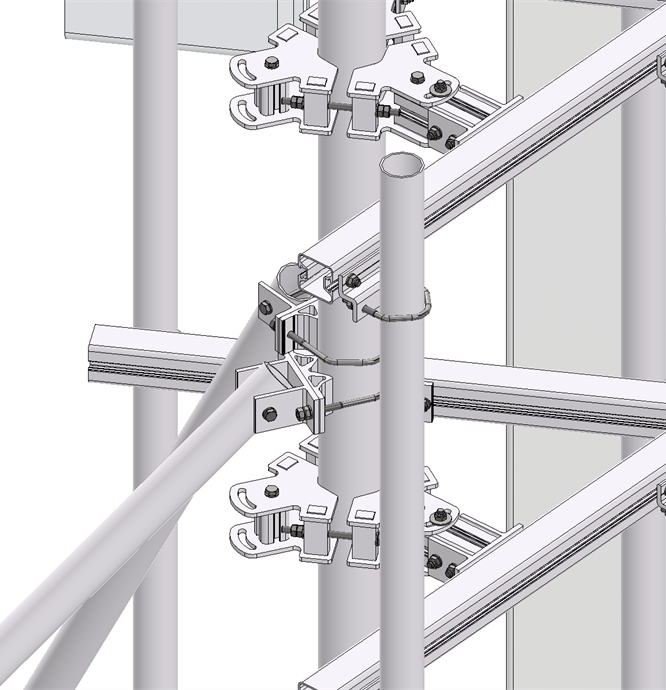

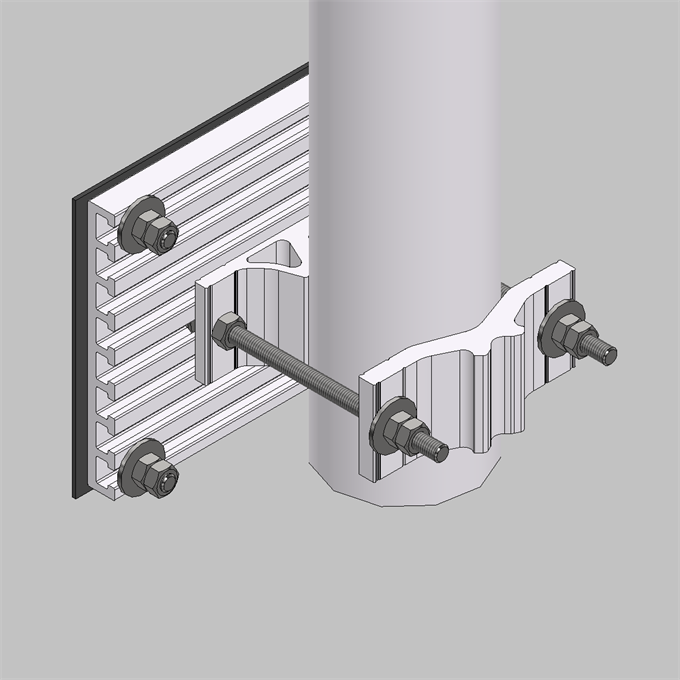

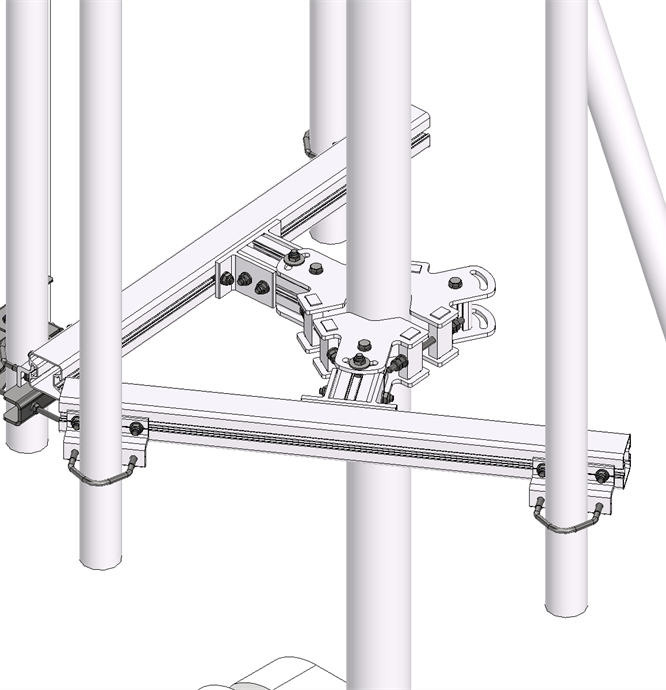

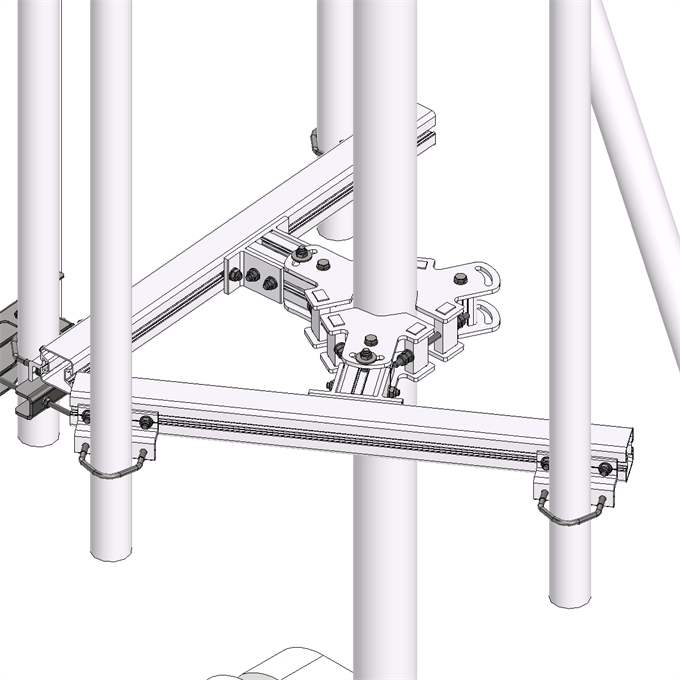

3-sector solution with braced wall mounts and struts supported by a non-penetrating ballast counterweight. Can also be combined with corner mount and especially suited for protruding elevator shafts or similar concrete roof structures.

Made from anodized extruded aluminium with acid-proof stainless steel fasteners.

This is a customized solution delivered to multiple clients, verified according to Euro-Code standards and delivered as a complete kit - ready to install. We can customize this solution to your individual requirements.

Technical Data
  • Main Pole Height

    5 m

  • Main Pole Diameter

    114 mm

  • Weight of Structure

    299 kg
    (excluding concrete pavers)

  • Wind Area of Antenna Payload

    5,25 m²

  • Reference Wind Speed

    26 m/s

  • Terrain Category


  • Height above terrain

    25 m

  • Total Antenna Weight

    287 kg

  • Number of Ballast Boxes

    13 pcs

  • Material used in structure

    Aluminium (anodized 25um)
    Stainless Stell A4

Custom Design
