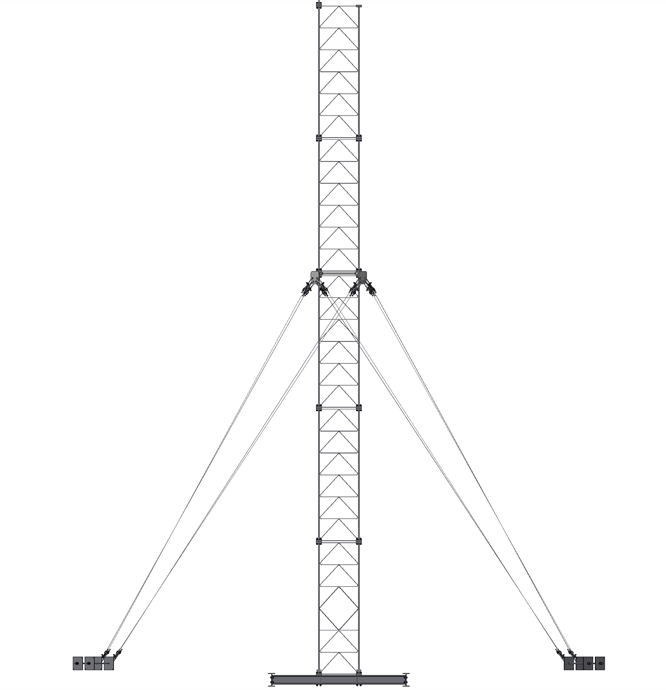

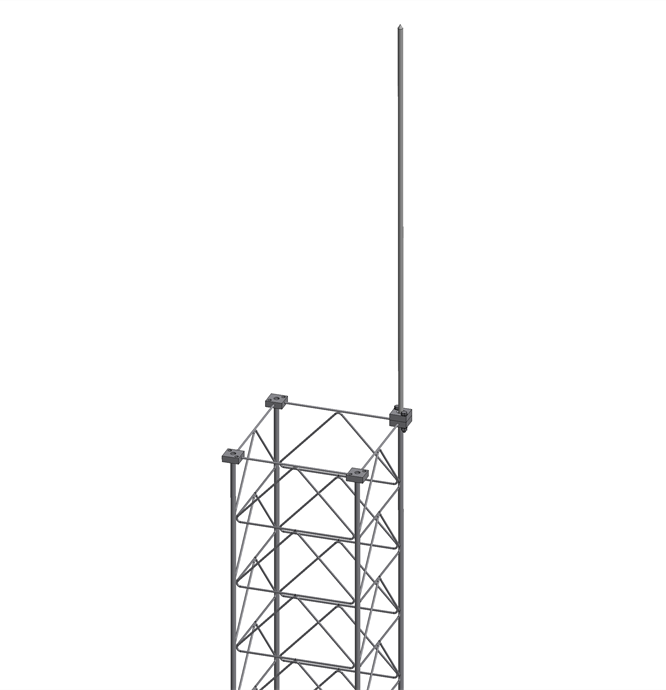

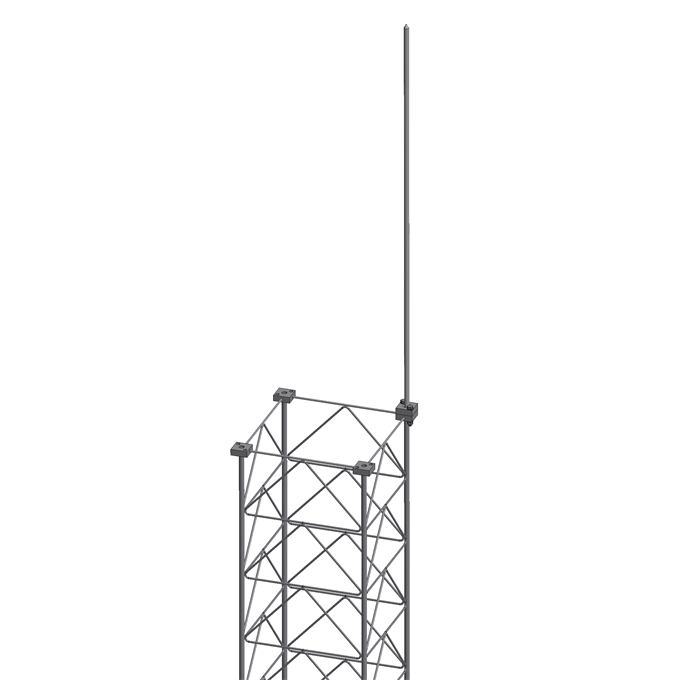

10 meter non-penetrating roof-top guyed mast.

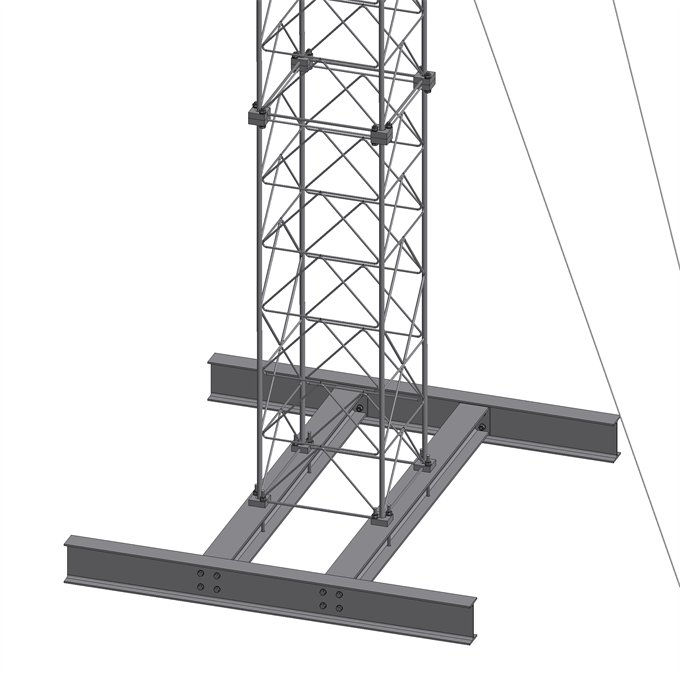

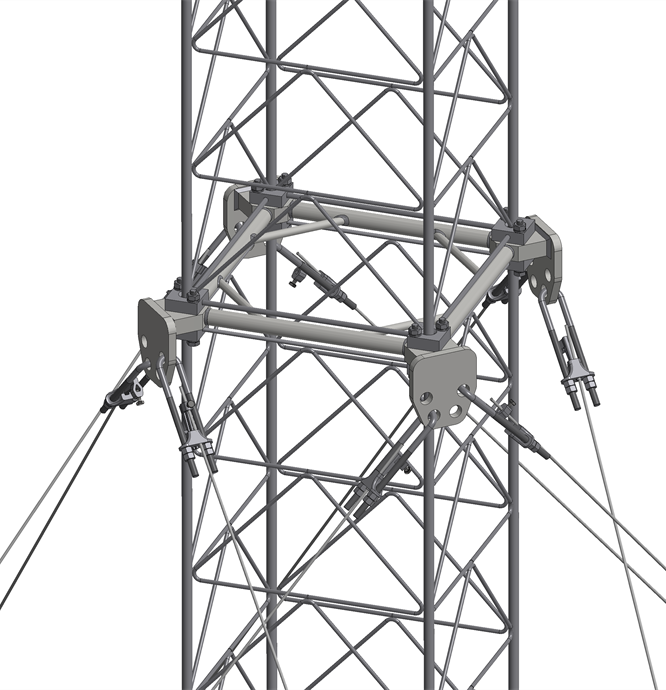

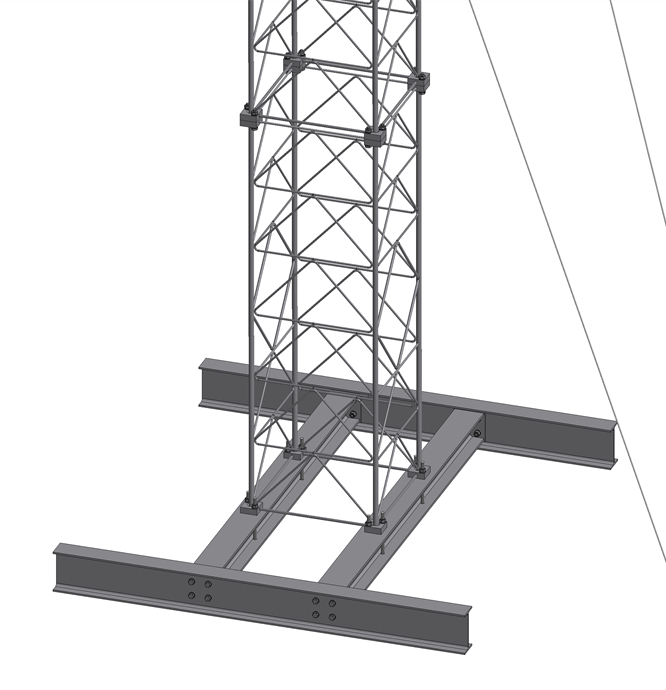

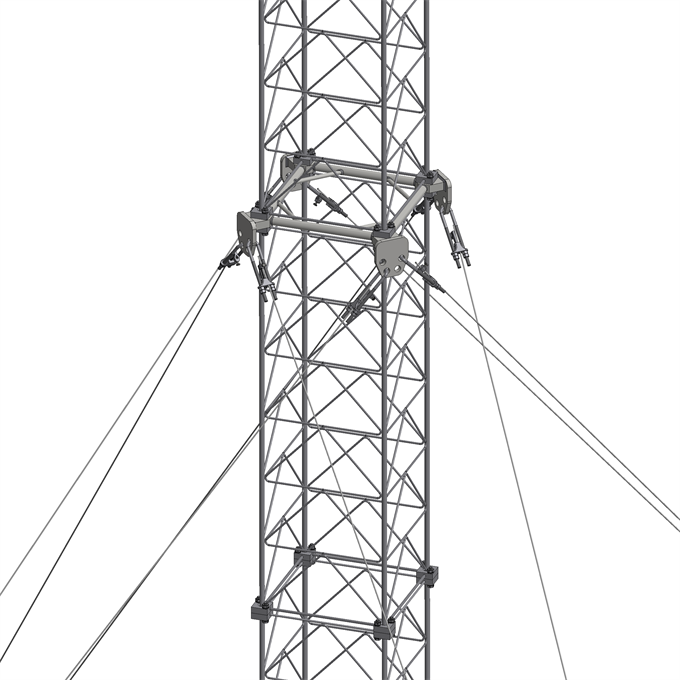

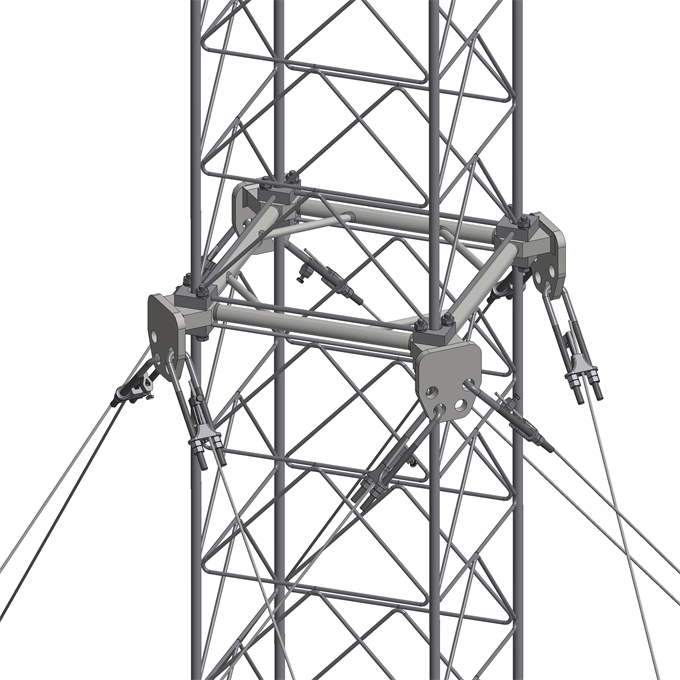

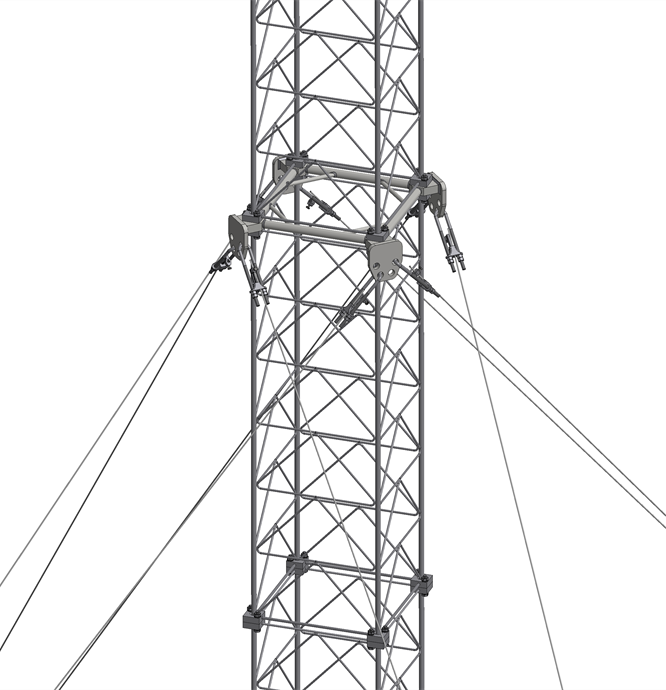

At its base the tower is attached to a steel H-frame that rests directly on the flat roof surface without any mechanical attachment. The torsion-resisting configuration of the guy-wires absorbs all moment of force and the twisting forces generated by the structure resulting in a pure vertical force at the base. Distributed over a wider area by the H-frame.
Each tower section weighs only 70kg and is 2 meters high and 60cm wide.
It can easily be carried by two people through doors, elevators, or twisting staircases.
Height
10 m
Segment Height
2 m
Mast Footprint
600 x 600 mm
Frame legs
SR25
Number of Segments
5 pcs
Single segment weight
63,5 kg
Main Construction Weight
370 kg
Wind Area of Antenna Payload
8 m² top 4 m
12 m² top 4 m
Material used in structure
S355J2
HDG Galvanized steel
Bolts
Class 8.8
