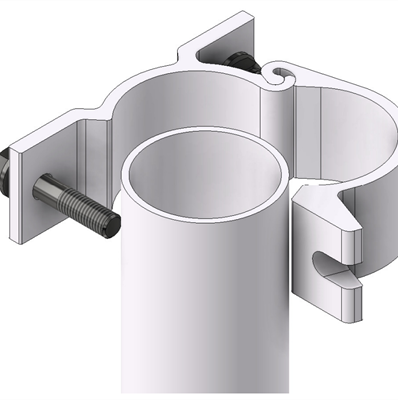

CueDee Clamp 120 is a unique clamp that will solve most of the fitting problems on telecom sites. Together with ALUBRA extrusions and fixing angles it is possible to build almost any kind of support structure.
CueDee clamp handles a wide range of frame leg designs, round, square, angular, etc.
CLAMP MOUNTING RANGE
Tubes; Ø25mm to Ø120mm
Square profiles; 35x35mm to 90x90mm
90˚ Angle profile; 35x35mm to 90x90mm
60˚ Angle profile; 40mm opening to 100mm opening
PRODUCT DIMENSIONS
(Length/Width/Height/Weight)
168mm / 200mm / 70mm / 0,9 kg
OTHER DATA
CueDee Small clamp 120 fits with Alubra 50
Uses M10 bolts (M10*190)
