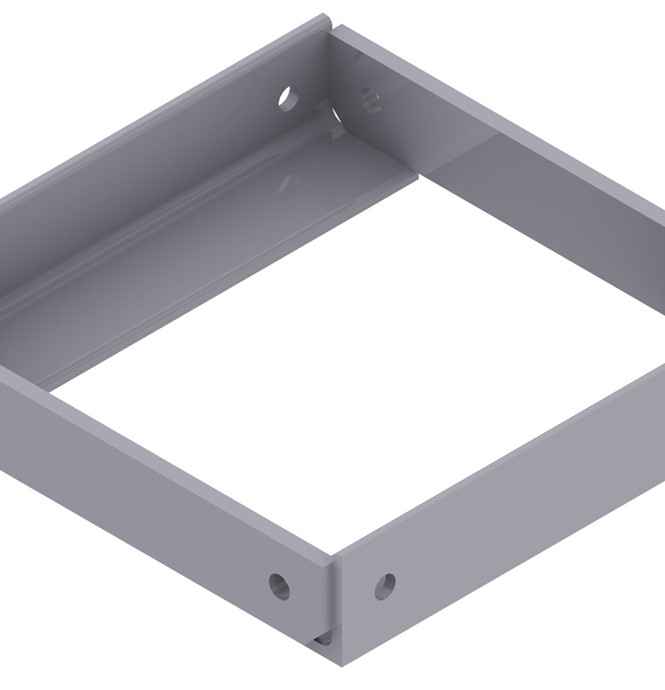

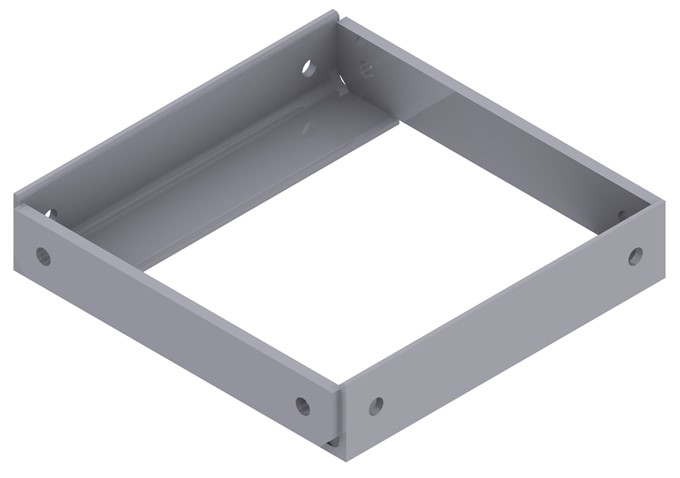

Ballast Box Heavy

P/N: 1740

The Ballast Box Heavy is used in CueDee's Ballast Solutions. It is generally used as a 2 by 2 to 5 by 5 box base with ballast weight covering wind, main tube height, radio and antenna requirements.

For detail strength calculation please contact CueDee for further discussions.

Function description

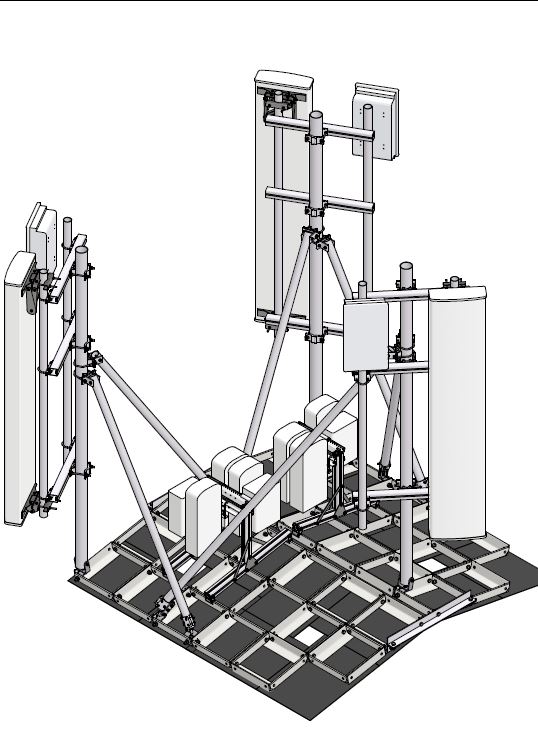

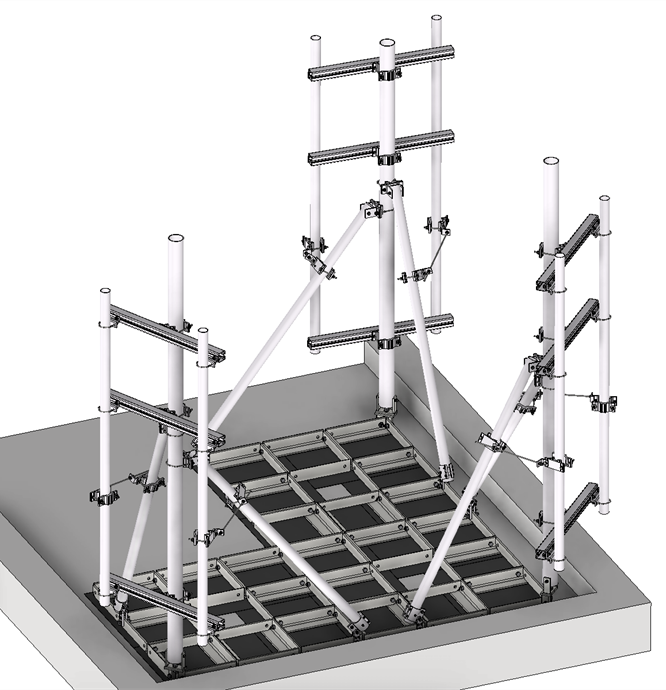

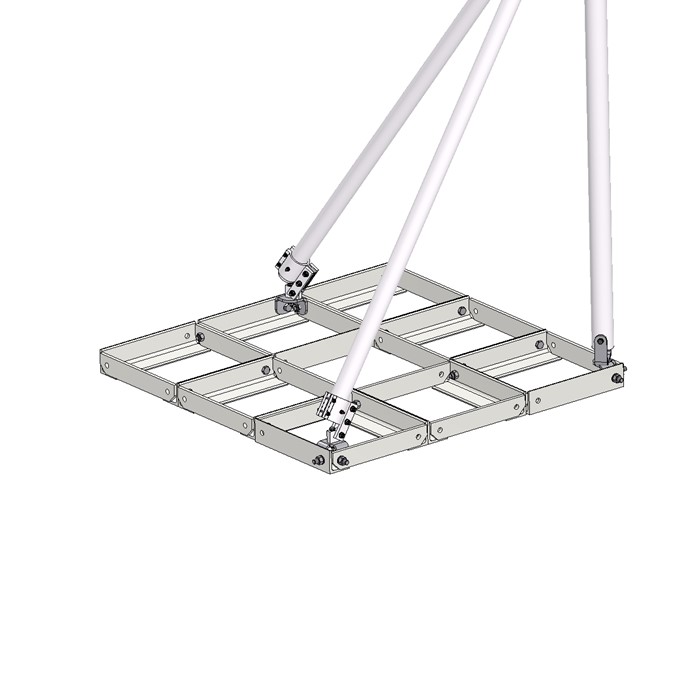

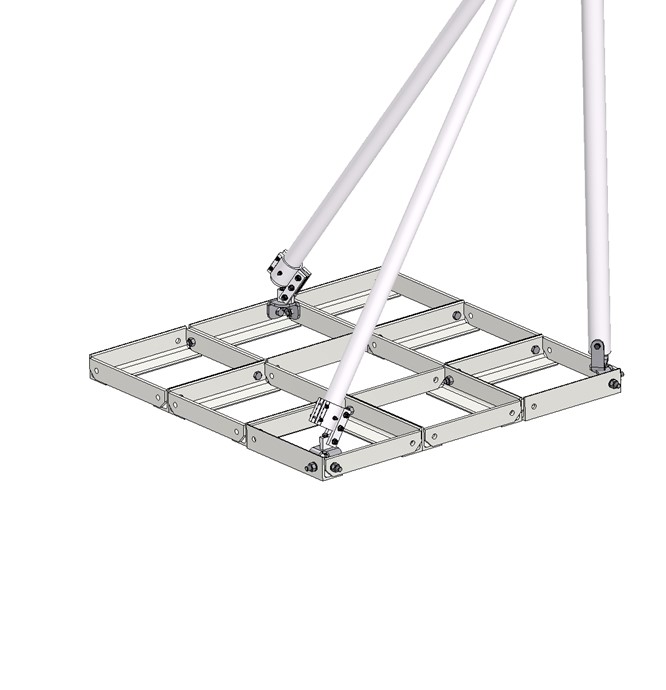

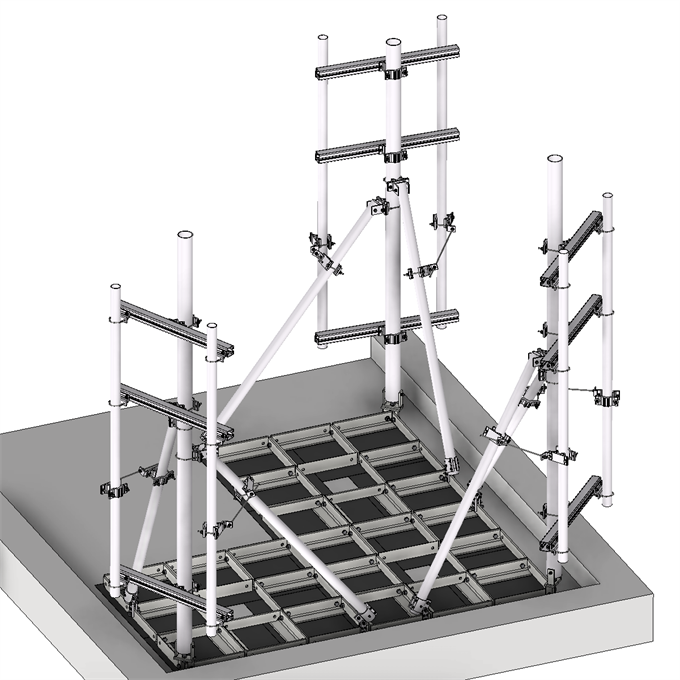

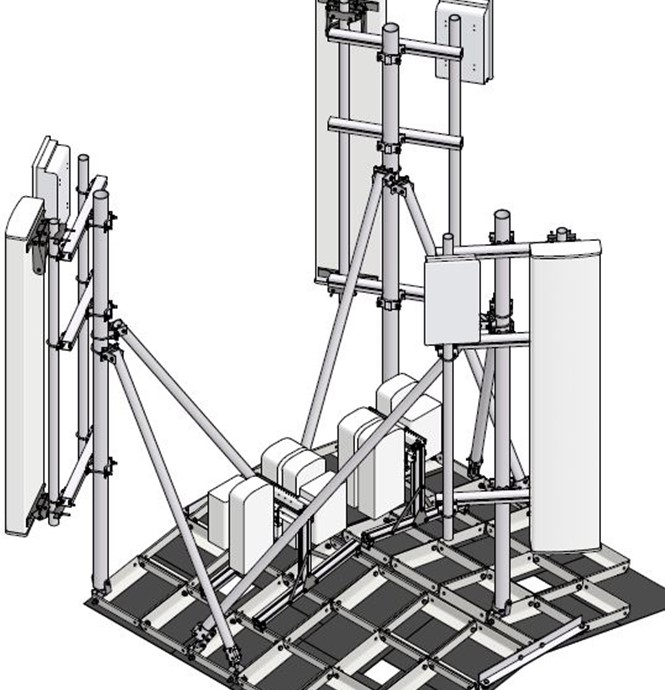

The ballast box is the foundation of CueDee's ballast rooftop solutions. It is used to build foundations as small as 2 by 2 meters to 3 by 3 meters. It acts as as the foundation as well as counter weight to support wind pressure.

Technical Data
  • PRODUCT DIMENSIONS

    (Length/Width/Height/Weight)
    500 mm / 500 mm / 100 mm / 22.9 kg

  • MOUNTING

    Mounts with M20 size nut and bolt.
